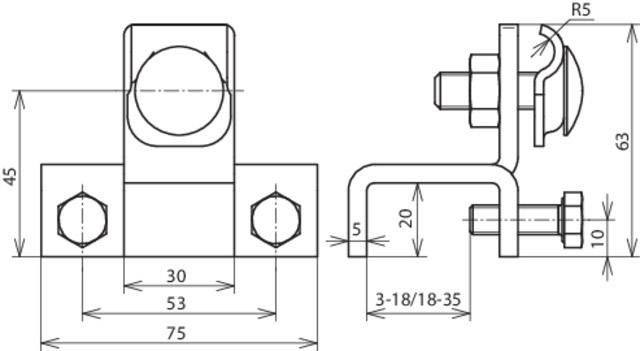

Technical drawing of an L-shaped metal bracket with dimensions. Front view on the left, side view on the right. Dimensions: Width 75 mm, Height 45 mm.

Technical drawing of an L-shaped metal bracket with dimensions. Front view on the left, side view on the right. Dimensions: Width 75 mm, Height 45 mm.

DEHN

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Clamping range: 18-35 mm
Clamping range rd: 6-10mm

Height: 63 mm

Length: 75 mm

Standards: DIN EN 62561-1

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1968011 DEHN 372140 AK 6.10 KB S KBF18 35 STTZN Connector clamp 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1968011 DEHN 372140 AK 6.10 KB S KBF18 35 STTZN Connector clamp 1 pc(s)

Description

Connection terminal for steel beams according to DIN EN 62561-1, for connection to the steel construction. Design vertically with clamping bracket, connection lengthwise or crosswise.
