DEHN 472209 PAS I 6AP M10 V2A Surge protection bracket 8.9 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Surge protection bracket
- Leakage current
8.9 kA
- Manufacturer part #
472209
- Factory colour
Multicolour
- Standards
DIN EN 62561-1
- Dim
(L x W x H) 295 x 40 x 40 mm
- Length
295 mm
- Width
40 mm
- Height
40 mm
- Content
1 pc(s)
- Weight
1.01
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968126 DEHN 472209 PAS I 6AP M10 V2A Surge protection bracket 8.9 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968126 DEHN 472209 PAS I 6AP M10 V2A Surge protection bracket 8.9 kA 1 pc(s)
Information
Information 1968126 DEHN 472209 PAS I 6AP M10 V2A Surge protection bracket 8.9 kA 1 pc(s)
Description

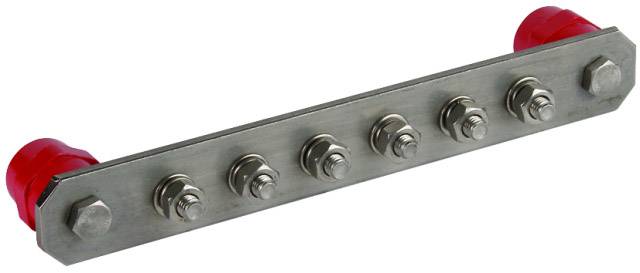

Equipotential bonding rail industry according to DIN EN 62561-1, for the protection and function potential equalization according to DIN VDE 0100 Part 410/540 and the lightning protection potential compensation according to DIN EN 62305-3 (VDE 0185-305-3). With insulator UP (duro plastically, red) with thread M10, UV-stabilised and halogen-free. Also suitable for use in hazardous areas (self-loosening the screws). Design with 6 ports-SCREW M10, lock washer and nut.
