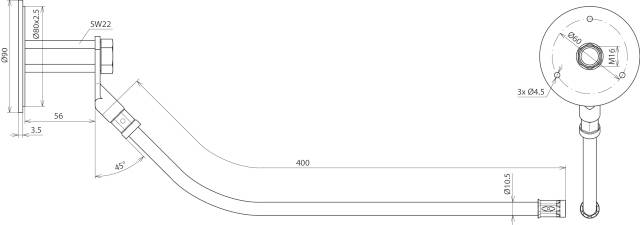

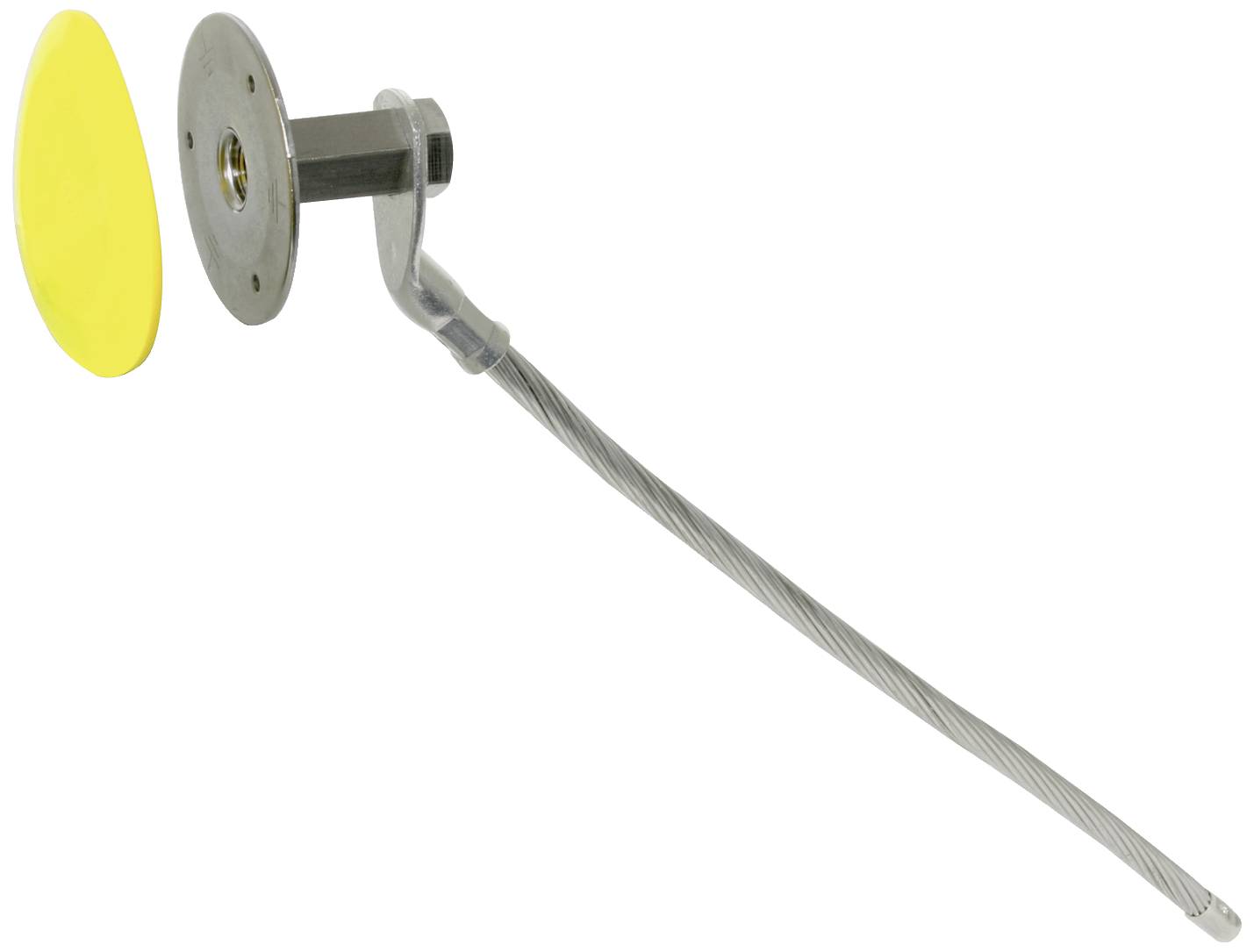

DEHN 478027 Earthing fixed point M16 NIRO (V4A) with Connection cable 70mm² L 400mm Cu/galSn 400 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Content
1 pc(s)
- Material
Stainless steel V4A
- Thread
M16
- Material properties
rust-proof
- Length
400 mm
56 mm
Stainless steel V4A
16
80 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2750748 DEHN 478027 Earthing fixed point M16 NIRO (V4A) with Connection cable 70mm² L 400mm Cu/galSn 400 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2750748 DEHN 478027 Earthing fixed point M16 NIRO (V4A) with Connection cable 70mm² L 400mm Cu/galSn 400 mm 1 pc(s)
Information
Information 2750748 DEHN 478027 Earthing fixed point M16 NIRO (V4A) with Connection cable 70mm² L 400mm Cu/galSn 400 mm 1 pc(s)
Description
Earthing point with connection thread M16 for higher current loads (50 Hz), e. B. For connection of the ring potential equalization to the earthing systems of high-voltage systems with nominal AC voltages of over 1 kV (transformer earthing). Design with connection cable made of Cu/galSn for mounting in the mold and tested according to DIN EN 62561-1.
