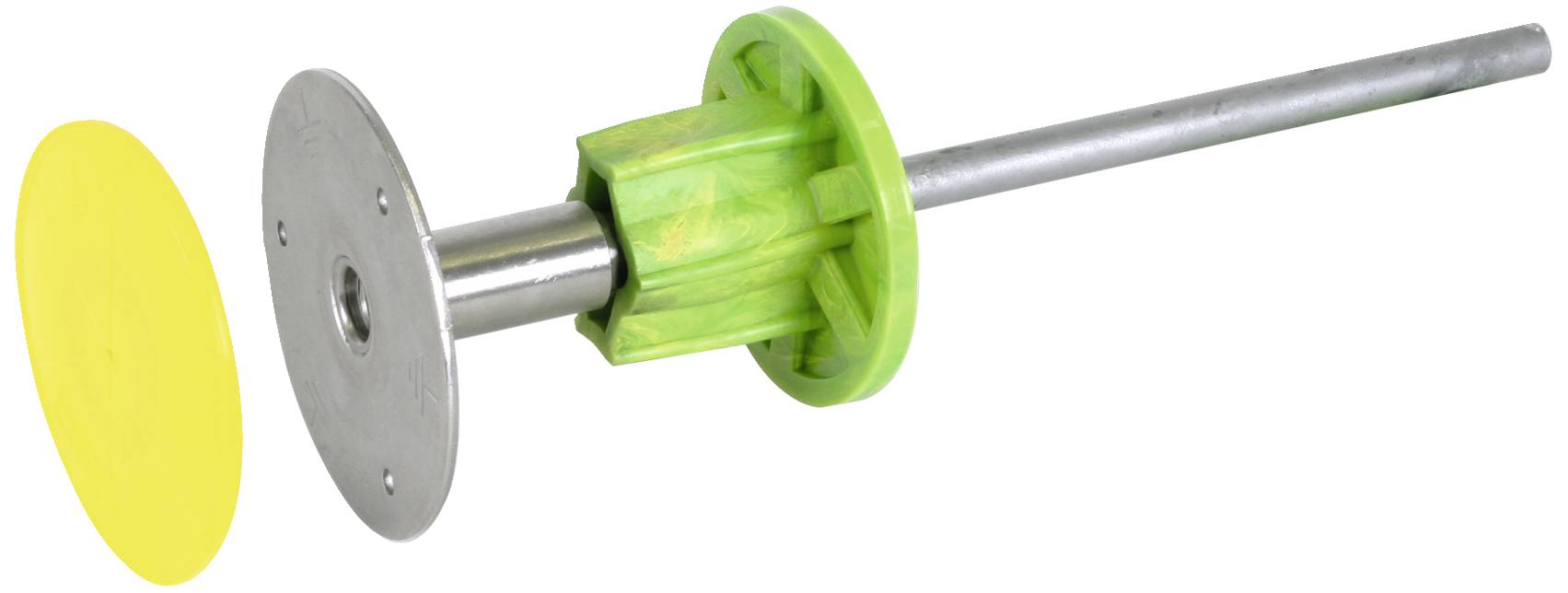

DEHN 478051 EFPM M10 12 V4A WS L245 VP STTZN Earth anchor 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Earth anchor
- Manufacturer part #
478051
- Content
1 pc(s)
- Weight
0.04
50 mm
Stainless steel V4A
10
155 mm
80 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2750090 DEHN 478051 EFPM M10 12 V4A WS L245 VP STTZN Earth anchor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2750090 DEHN 478051 EFPM M10 12 V4A WS L245 VP STTZN Earth anchor 1 pc(s)
Information
Information 2750090 DEHN 478051 EFPM M10 12 V4A WS L245 VP STTZN Earth anchor 1 pc(s)
Description

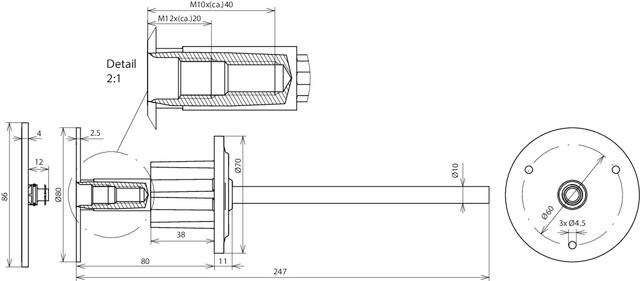

Earthing fixed point according to DIN EN 62561-1, as corrosion-free connection of the conductor, for example B. To the reinforcement of buildings or to the earthing system, for the protection potential equalization and / or the functional potential compensation for installation in the formwork. Type M design with pressed-in connecting axle (10 mm) including additional water barrier and connection thread M10 / 12. Tested with compressed air 5 bar according to DIN EN 62561-5 and with 1 bar pressure water.
