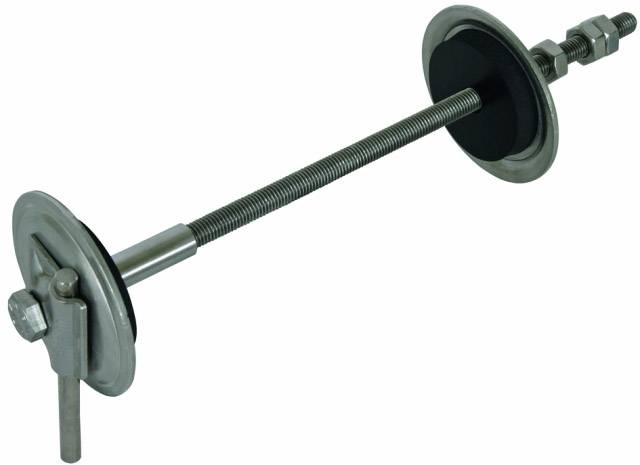

DEHN 478410 EWD MVK8.10 M10 L100 300 V4A Earth / wall grommet 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Implementation length: 100-300 mm
- Sealing plate: 80 mm
- Product type
Earth / wall grommet
- Manufacturer part #
478410
- Standards
DIN EN 62561-1
- Length
308 mm
- Content
1 pc(s)
- Weight
0.58
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968106 DEHN 478410 EWD MVK8.10 M10 L100 300 V4A Earth / wall grommet 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968106 DEHN 478410 EWD MVK8.10 M10 L100 300 V4A Earth / wall grommet 1 pc(s)
Description
Grounding and feedthrough with MV clip made of stainless steel (V4A), to the pressure waterproof implementation of the earthing/equipotential bonding conductor at walls and walls with threaded rod M10 Stainless. Design for subsequent installation with bore (D 14 mm) or if necessary by the completion spreader the formwork. With pressure water test up to 1 bar (up to depth of 10 m as compared to standing water).
