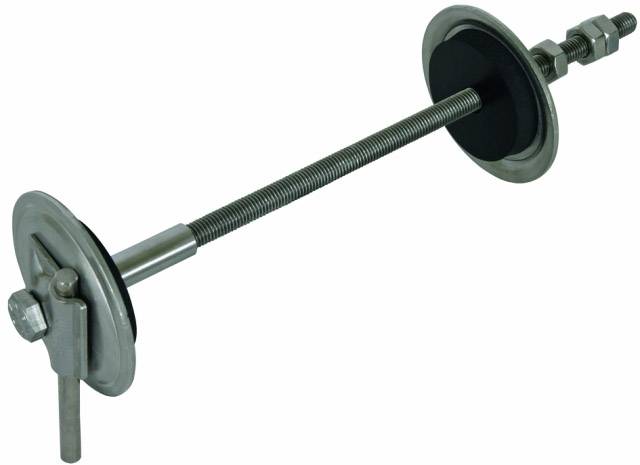

DEHN 478450 EWD MVK8.10 M10 L500 700 V4A Earth / wall grommet 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Implementation length: 500 - 700 mm
- Sealing plate diameter: 80 mm
- Product type
Earth / wall grommet
- Manufacturer part #
478450
- Factory colour
Multicolour
- Standards
DIN EN 62561-1
- Length
708 mm
- Content
1 pc(s)
- Weight
0.78
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967962 DEHN 478450 EWD MVK8.10 M10 L500 700 V4A Earth / wall grommet 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967962 DEHN 478450 EWD MVK8.10 M10 L500 700 V4A Earth / wall grommet 1 pc(s)
Description
Grounding and feedthrough with MV clip made of stainless steel (V4A), to the pressure waterproof implementation of the earthing/equipotential bonding conductor at walls and walls with threaded rod M10 Stainless. Design for subsequent installation with bore (D 14 mm) or if necessary by the completion spreader the formwork. With pressure water test up to 1 bar (up to depth of 10 m as compared to standing water).
