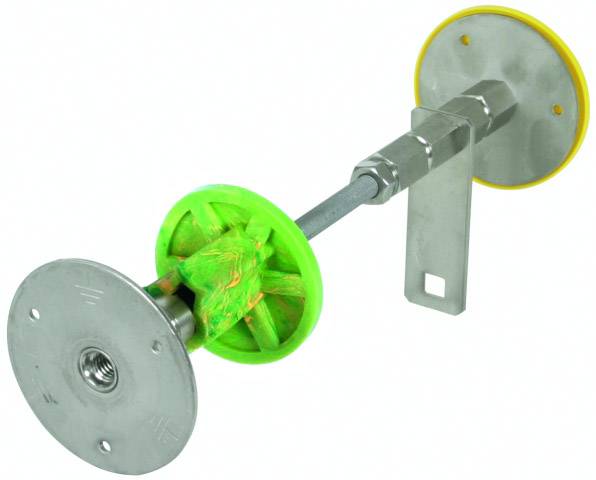

DEHN 478530 WD M10 12 V4A DWD L200 300 STTZN Wall grommet 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- For wall thickness: 200-300 mm
- Connection plate diameter: 80 mm
- Product type
Wall grommet
- Manufacturer part #
478530
- Standards
DIN EN 62561 (1+5)
- Content
1 pc(s)
- Weight
0.70
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968098 DEHN 478530 WD M10 12 V4A DWD L200 300 STTZN Wall grommet 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968098 DEHN 478530 WD M10 12 V4A DWD L200 300 STTZN Wall grommet 1 pc(s)
Description
Pressurised water density feedthrough for white tub, for pressure waterproof implementation of the earthing/equipotential bonding conductor by concrete walls, adjustable with threaded rod M10. Design for the formwork installation with water lock and double-thread M10/12. Tested according to DIN EN 62561-5 with compressed air 5 bar and water pressure test up to 1 bar (up to depth of 10 m as compared to standing water). Includes connecting piece (St/tZn dim. 30 x 4 mm) with square-hole for connection with terminal block with round conductors or cross pieces in flat belts.
