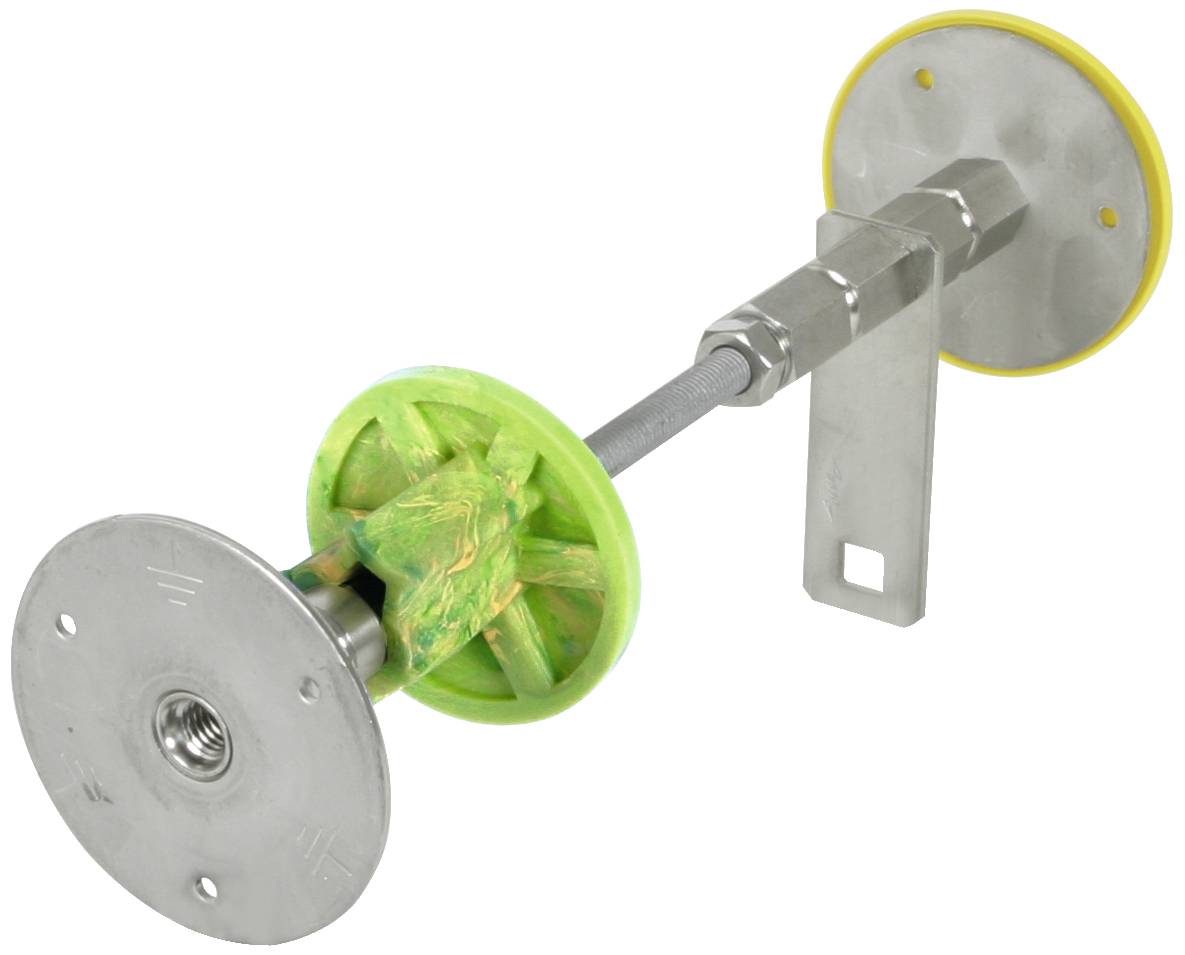

Metal protective mounting bracket with two round plates and a green and yellow central section; could be used for mounting materials.

Metal protective mounting bracket with two round plates and a green and yellow central section; could be used for mounting materials.

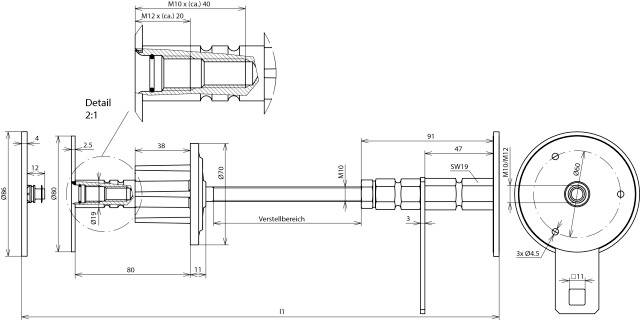

Technical drawing of a valve with details of dimensions and mechanical components. Diagram shows assembly and cross-sectional view.

1/2

DEHN

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Wall grommet

Manufacturer part #: 478550

Length: 400 mm

Content: 1 pc(s)

Weight: 0.21

: Untreated

: Bushing for roofs, walls and earthing electrodes

: Stainless steel V4A

UKCA: not relevant

Documents & Downloads

Datasheet

European union

Datasheet 2750324 DEHN 478550 WD M10 12 V4A DWD L400 500 STTZN Wall grommet 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750324 DEHN 478550 WD M10 12 V4A DWD L400 500 STTZN Wall grommet 1 pc(s)

Information

European union

Information 2750324 DEHN 478550 WD M10 12 V4A DWD L400 500 STTZN Wall grommet 1 pc(s)

Description

Pressure-proof feedthrough for white pan, for pressure-tight feedthrough/equipotential bonding conductor through concrete walls, adjustable with M10 threaded rod. Designed for fitting on formwork with water lock and double thread M10 / 12. With 6 bits. Connector piece (St/tZn dim. 30 x 4 mm) with square hole for the connection with terminal block in round conductors or cross-section in flat bands.
