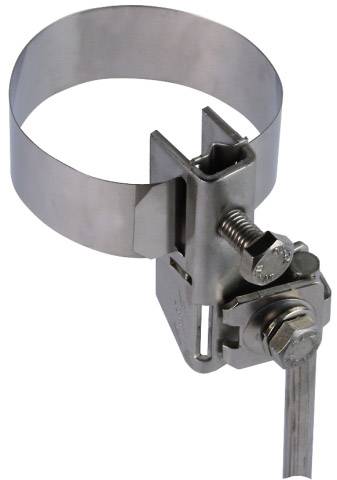

DEHN 540103 BRS 16.89 AK1X10 2X6.8 V2A Antenna pipe strap 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection wire rd: Ø 6-8 mm rd 1-2/1 x Ø 10 mm
- Clamping range tube: Ø 16-89 mm (3/4-3'')
- Product type
Antenna pipe strap
- Manufacturer part #
540103
- Standards
DIN EN 62561-1
- Dim
(L x W x H) 330 x 25 x 0.3 mm
- Length
330 mm
- Width
25 mm
- Height
0.3 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968008 DEHN 540103 BRS 16.89 AK1X10 2X6.8 V2A Antenna pipe strap 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968008 DEHN 540103 BRS 16.89 AK1X10 2X6.8 V2A Antenna pipe strap 1 pc(s)
Description
Antenna band clamp according to DIN EN 62561-1, for incorporating tubes in the protection and potential compensation function according to DIN VDE 0100-410/540 and the lightning protection potential compensation according to DIN EN 62305-3 (VDE 0185-305-3). Design complete with continuously adjustable clamping band made of stainless steel, for the connection of 1 conductor Rd D 10 mm or 1-2 Conductor Rd D 6-8mm or 4-50 mm? (On/multi-wired).
