DEHN 540910 BRS 27.60 AQ4 25 V2A Earth pipe strap 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Clamping range tube: 27-60 mm
- Product type
Earth pipe strap
- Manufacturer part #
540910
- Standards
DIN EN 62561-1
- Dim
(L x W x H) 240 x 25 x 0.3 mm
- Length
240 mm
- Width
25 mm
- Height
0.3 mm
- Depth
30.0000 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967941 DEHN 540910 BRS 27.60 AQ4 25 V2A Earth pipe strap 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967941 DEHN 540910 BRS 27.60 AQ4 25 V2A Earth pipe strap 1 pc(s)
Description

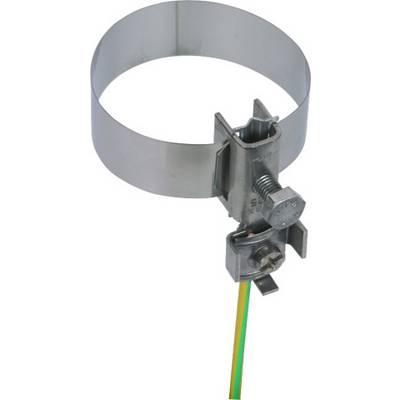

Earthing band clamp for incorporating tubes in the protection and potential compensation function according to DIN VDE 0100-410/540. Design Standard, with continuously adjustable clamping band made of stainless steel, for the connection of 1 or 2 conductors or feed-through wiring, connection cross-section 4-25 mm?.
