DEHN 563200 PAS 11AK Screw terminal block 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Screw terminal block
- Manufacturer part #
563200
- Factory colour
Multicolour
- Standards
DIN EN 62561-1
- Dim
(L x W x H) 161 x 59 x 35 mm
- Length
161 mm
- Width
59 mm
- Height
35 mm
- Content
1 pc(s)
- Connection type
DIN connector
- Weight
0.41
60
With covering cap
60 mm
Surface mounting modular
160 m
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967918 DEHN 563200 PAS 11AK Screw terminal block 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967918 DEHN 563200 PAS 11AK Screw terminal block 1 pc(s)
Description

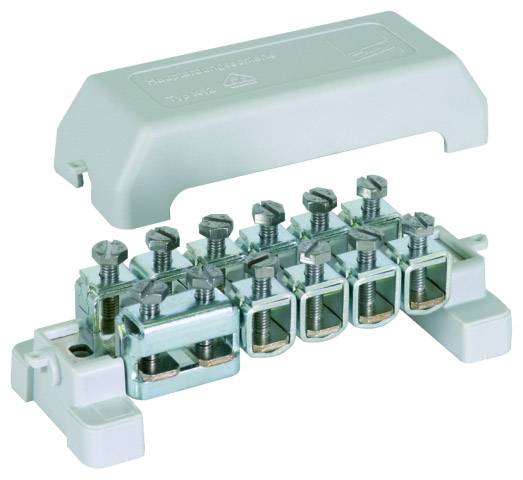

Equipotential bonding rail according to DIN EN 62561-1, for the protection and function potential equalization according to DIN VDE 0100-410/540 (main earth bonding bar) and the lightning protection potential compensation according to DIN EN 62305-3 (VDE 0185-305-3). Design Standard, tested according to DIN VDE 0618-1, with CE mark, clip-on terminals St/gal Zn, fixing blocks and plastic cover hood, gray (halogen-free), cover sealable and labelled.
