DEHN 578322 Earth ground clamp meter Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Internal memory: TRUE
- Product type
Earth ground clamp meter
- Interfaces
RS232C
ISO standards
IP40
- Dim
(L x W x H) 290 x 100 x 290 mm
- Display
Digital
- Content
1 pc(s)
- Reading category
CAT IV 300 V
- Measuring type
Clamp
- Width
100 mm
- Height
290 mm
- Length
290 mm
- Type
578322
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3801974 DEHN 578322 Earth ground clamp meter Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3801974 DEHN 578322 Earth ground clamp meter Calibrated to (ISO standards)
Description

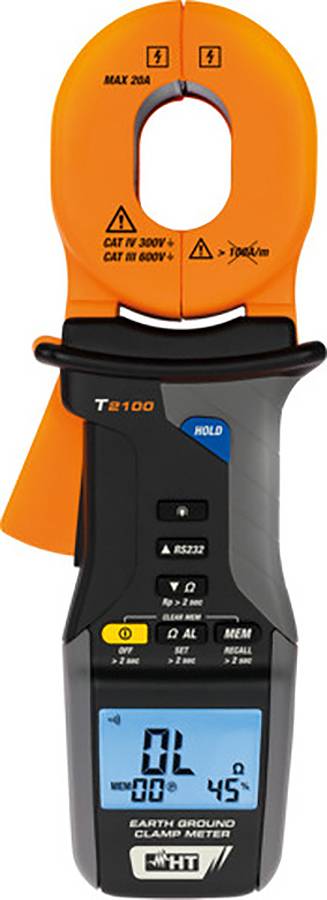

HT T2100 Ground measuring clamp; Standards: IEC/EN 61010-1, IEC/EN 61010-2-032; LCD display with background lighting; Earthing measurement without auxiliary ground wire from 0.010 Ohm to 1200 Ohm; Measured value storage for 99 measured values; RS-232 interface for data transmission (for the COMBI G3); Optical and acoustic alarm function; High-quality shielding against external fields; Overvoltage category: CAT IV 300V / CAT III 600V; Dimensions: 290 x 55 x 100 mm; oval pliers diameter: 31 x 48 mm
This text is machine translated.
This text is machine translated.
Features
- Automatic calibration, Bluetooth interface including software.
- Can be used as accessories for the installation tester COMBI G3
- Extensive accessories
- Sturdy protective case
- Batteries 4 x 1.5V type AA
- RESISTANCE TEST LOOP 1 Ω, 5 Ω, 10 Ω
- User manual
- ISO 9000 calibration certificate
