DEHN 578323 Electrical tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Internal memory: TRUE
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Interfaces
USB
- Dim
(L x W x H) 235 x 165 x 75 mm
- Reading range (VDE)
Resistance
- Display type
LCD Touch
- Width
165 mm
- Height
75 mm
- Length
235 mm
- Voltage supply
Rechargeable
- Memory (space)
999
- Memory
Yes
- Type
578323
- Features
built-in colour touchscreen
- Display
Digital
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3801992 DEHN 578323 Electrical tester
User & Safety Instructions
User & Safety Instructions 3801992 DEHN 578323 Electrical tester
Description

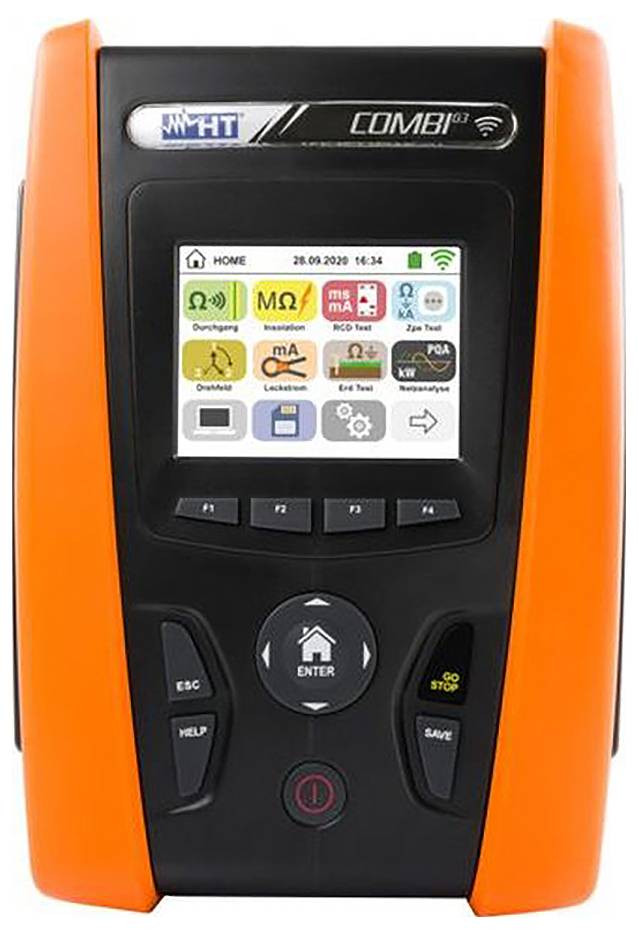

HT COMBI G3 Universal-VDE 0100 / VDE 0105, including accessories; Function: Installation tester with colored touch display and backlight; Measuring possibilities: Low ohm measurements: Measuring range 0.001 ... 99.9 ohms with 200mA DC; insulation test, earthing measurement, spec. Ground resistance, impedances, fault current measurement, RCD test; memory: Capacity for 999 measurements in 3 editable levels; dimensions: 235 x 165 x 75 mm; transportation: Robust hard shell case
This text is machine translated.
This text is machine translated.
Features
- VDE0100 / VDE 0105 installation tester
- Can be used for low-ohm, loop impedance and insulation measurements.
- For testing the consistency of steel reinforcement in reinforced concrete with 10 A measuring current as per DIN EN 62305-3.
- (Necessary accessories: EQUITEST 10 A – part No. 578 321)
- Additional measurement methods:
- Earthing measurement with 2 and 3-wire method
- Earthing measurement with optional earthing clip-on ammeter (pliers T2100 – Art.-No. 578 322)
- Earth resistance measurement with 4-conductor method
- Extensive accessories
- Robust carrying case
- 6 rechargeable batteries (NiMH 1.2 V AA)
- External charger
- Universal KIT:4 test leads + 4 alligator clamps + 3 test tips
- 3-conductor earthing contact cable (L 1500 mm)
- Stylus
- Quick guide + user manual
- Calibration certificate ISO9000
- TOPVIEW Software + USB connection cable
