Buy DEHN 610010 AK TE 20.30 8.12 FL40 STTZN Clamp

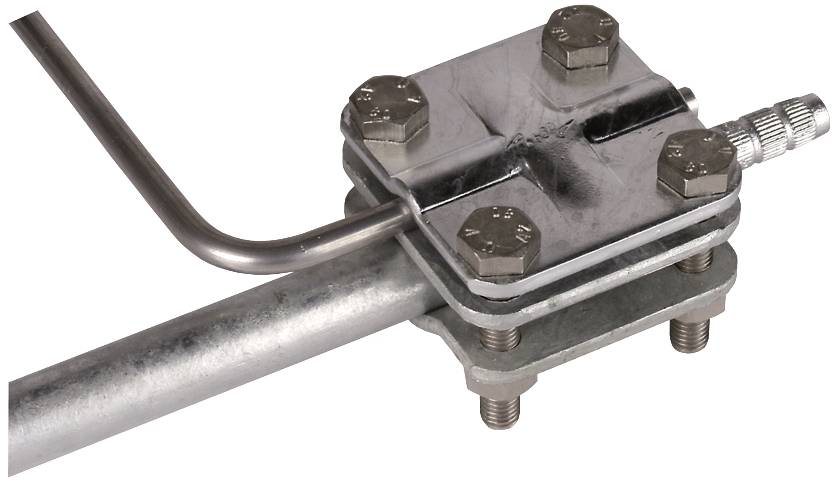

Close-up of a metal angle bracket with screws and an attached L-shaped pipe. The construct appears robust and functional.

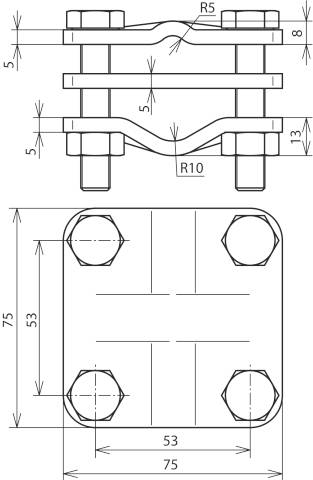

Technical drawing of a metal connection with dimensions: 75x53 mm plate, 5 mm thick. Screws and curves marked with radius R5 and R10.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Clamp

Manufacturer part #: 610010

Content: 1 pc(s)

Weight: 0.79

: Hot-dip galvanized

: Connection terminal

: Steel

: 8.0-12.5 mm

: Up to 40 mm

: 50.0-95.0 mm²

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750774 DEHN 610010 AK TE 20.30 8.12 FL40 STTZN Clamp

User & Safety Instructions

User & Safety Instructions 2750774 DEHN 610010 AK TE 20.30 8.12 FL40 STTZN Clamp

Information

Information 2750774 DEHN 610010 AK TE 20.30 8.12 FL40 STTZN Clamp

Description

Connection terminal according to DIN EN 62561-1, for cross and parallel connection of round conductors, flat bands or wires at earthing rods Design for deep earthing rods Ø20-30 mm, with four screws M10.

This text is machine translated.
