Buy DEHN 630129 AK ES TE 20 RD10 FL30 V4A Clamp

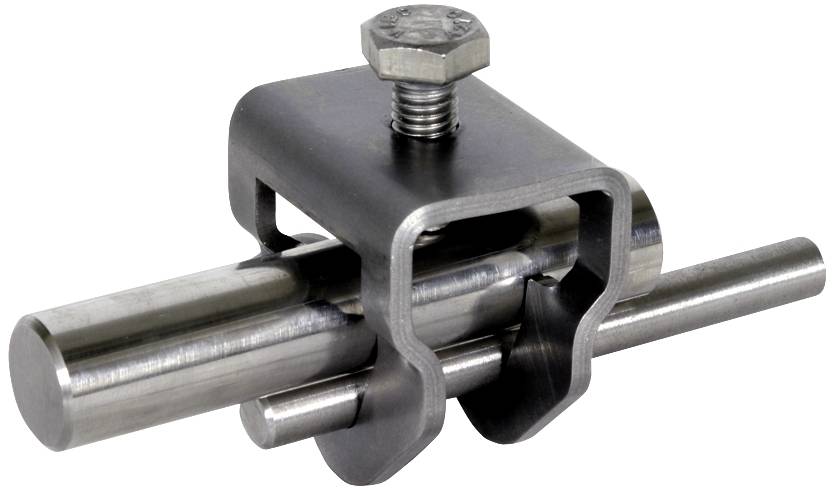

Metal component with two parallel bars, secured by a U-shaped clamp and a screw at the top.

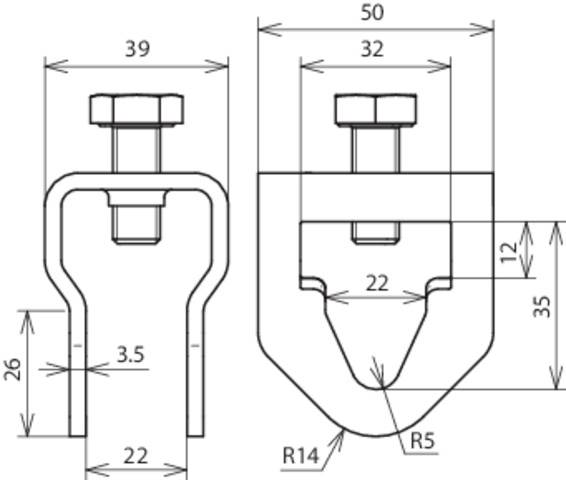

Technical drawing of a metal connector with dimensions: width 39, height 26, screw size 22. Side and front views shown.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Clamp

Manufacturer part #: 630129

Content: 25 pc(s)

: Untreated

: Connection terminal

: Stainless steel V4A

: 10.0-10.0 mm

: Up to 30 mm

: 70.0-70.0 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2750614 DEHN 630129 AK ES TE 20 RD10 FL30 V4A Clamp

User & Safety Instructions

User & Safety Instructions 2750614 DEHN 630129 AK ES TE 20 RD10 FL30 V4A Clamp

Information

Information 2750614 DEHN 630129 AK ES TE 20 RD10 FL30 V4A Clamp

Description

Screw-in connection terminal according to DIN EN 62561-1, for the connection of round conductors, flat bands or ropes at bass electrodes Designed for cross-connection and parallel connection.

This text is machine translated.
