Buy DEHN 635100 PSE 50X50X3 1000 STTZN Earthing rod

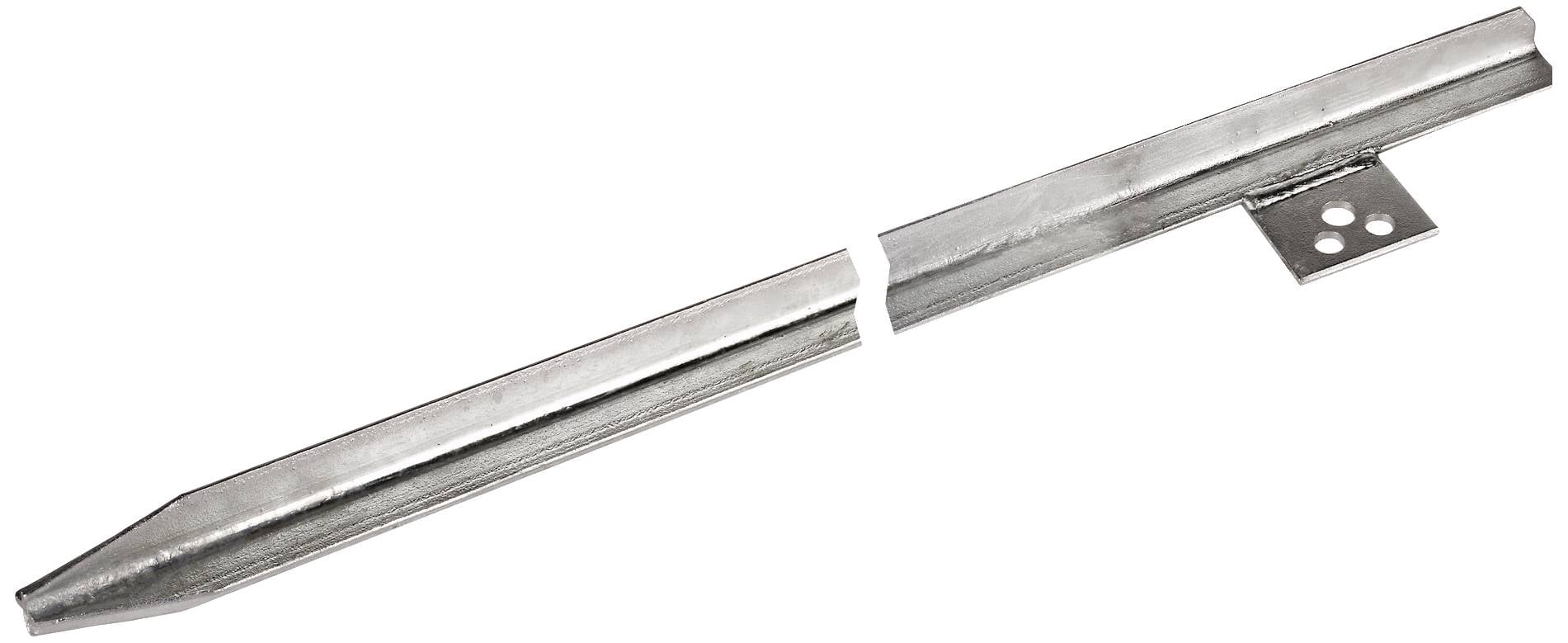

A silver metal tube that transitions to a three-holed mounting bracket at its upper end. The tube is tapered at one end.

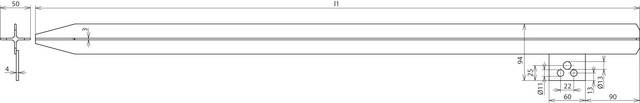

Technical drawing of a bolt: Length 80 mm, diameter 10 mm, tapered point. Side views with dimensions and cross-sectional view.

1/2

Datasheet (PDF)

Unavailable

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Earthing rod

Manufacturer part #: 635100

Dim: (L x W x H) 1000 x 50 x 50 mm

Length: 1000 mm

Width: 50 mm

Height: 50 mm

Content: 1 pc(s)

: Equipped with connection lug

: 50 mm

: 1000 mm

: Steel

: TRUE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750460 DEHN 635100 PSE 50X50X3 1000 STTZN Earthing rod

User & Safety Instructions

User & Safety Instructions 2750460 DEHN 635100 PSE 50X50X3 1000 STTZN Earthing rod

Information

Information 2750460 DEHN 635100 PSE 50X50X3 1000 STTZN Earthing rod

Description

Profile loaders after DIN EN 62561-2, for the construction of earthing equipment, for example B. For antenna or construction current distributor earthing. Design made of cross-profile 50 x 50 x 3 mm, with connection flaps and holes, for example: For KS-connector.

This text is machine translated.
