DEHN 690001 ESET 1 EFH 120 Basis Earthing kit 1 Set
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Earthing set basic
- Grounding sets for application in residential buildings.
- Very good earth sensitivity even without ditches or cellars through deep soils
- Quick to install
Technical specifications
- Product type
Earthing kit
- Manufacturer part #
690001
- Factory colour
Metal
- Compatible with (details)
Residential buildings up to 120m² building base area according to DIN 18014:2023-06
- Length
2 m
- Content
1 Set
Documents & Downloads
Datasheet
Datasheet 2979959 DEHN 690001 ESET 1 EFH 120 Basis Earthing kit 1 Set
User & Safety Instructions
User & Safety Instructions 2979959 DEHN 690001 ESET 1 EFH 120 Basis Earthing kit 1 Set
Description
Earthing set Basis for creating a standard-compliant earthing system for residential buildings up to 120m² building base area according to DIN 18014:2023-06.
Before the installation of the grounding kit, the normative prescribed design of the grounding system must prove that this
Grounding set can be used for individual application.
This text is machine translated.
Before the installation of the grounding kit, the normative prescribed design of the grounding system must prove that this
Grounding set can be used for individual application.
This text is machine translated.
Features
- Grounding sets for application in residential buildings.
- Very good earth sensitivity even without ditches or cellars through deep soils
- Quick to install
- Compliance with standards
- Handy packages with 2 m length (no Coilware)
- An article number consisting of four packages with all, WAS is required
- Easy transport and storage
- Adherence to maximum transport weights

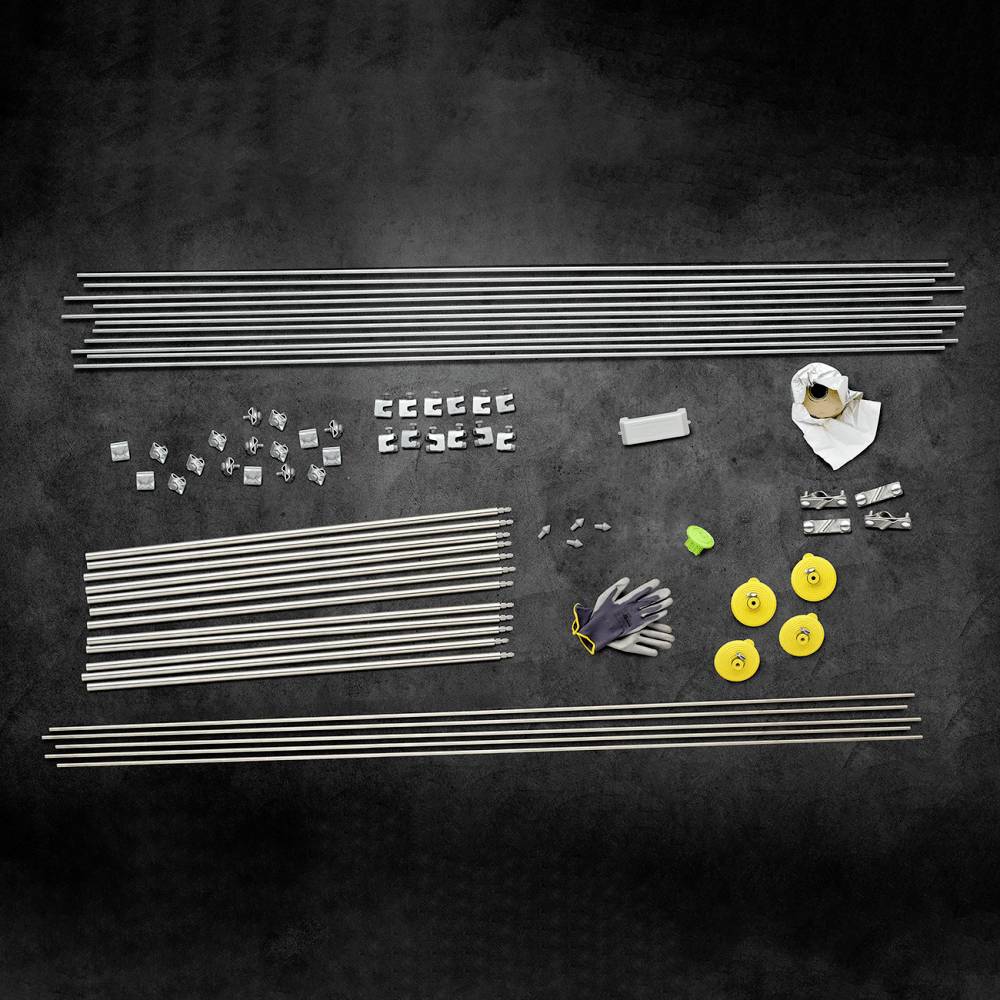

Scope of delivery
- 5x round steel Niro V4A, Ø10 mm, L 2000 mm
- 11x round steel St/tZn, Ø10 mm, L 2000 mm
- 4x sealing sleeves
- 4x hammer tip for deep earth ground
- 4x connection clamp Niro V4A
- 1x anti-corrosion binder
- 17x MV terminals St/tZn
- 12x connection clip St/tZn
- 1x potential balancing rail
- 1x marking of connection lug
- 1x gloves (size 10, pair)
- 1x installation guide
- 1x test protocol
- 12x depth earthing Niro Ø20 mm, L 1000 mm
Hints
Supplied in 4 packages.
