DEHN 740200 ESD tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal voltage (UN): 6 ... 420 kV
- Frequency: 16.7 ... 60 Hz
- Rechargeable 750 mAh battery capacity
- Charging: Inductive charging (Qi-Standard), charger not included
- Protection system: IP 65
- Self-test function: Yes
- Operation: 1-button operating concept
- Operation: Standby mode (continuous operation)
- Bluetooth LE transmission mode
- Frequency range: 2,400 … 2,483.5 MHz
- Transmission power: Max. +5 dBm
- Dimensions 50 x 70 x 30 mm
- Product type
ESD tester
- Type
740200
- Width
50 mm
- Height
70 mm
- Dim
(W x H x D) 50 x 70 x 30 mm
- Range of use
ESD
- Depth
30 mm
- Type
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3800393 DEHN 740200 ESD tester
User & Safety Instructions
User & Safety Instructions 3800393 DEHN 740200 ESD tester
Description
DEHNsense EFD (voltage warning), portable E-field danger warning warns of accidental penetration into the danger zone visually, acoustically and haptically. System-specific adjustment of the response sensitivity, settings and device information via the free DEHNwork APP. It serves as an additional measure to the 5 safety rules.
This text is machine translated.
This text is machine translated.

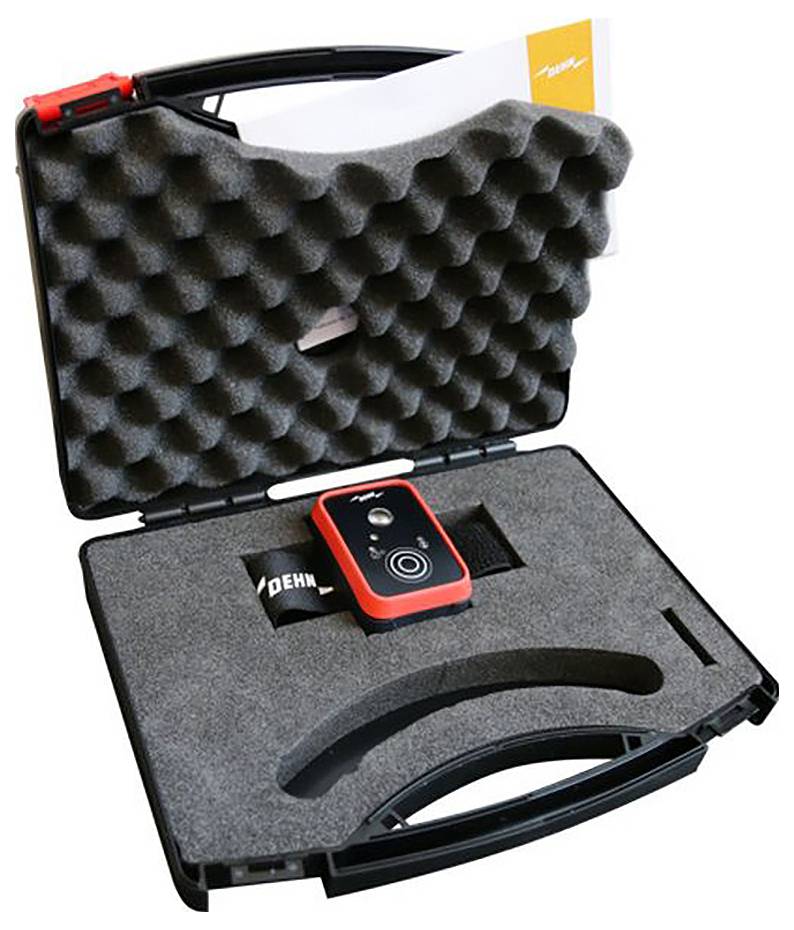

Scope of delivery
- 1x DEHNsense EFD including adapter
- 1x flexible wristband for carrying at the wrist
- 1x user manual
- 1x plastic case
Hints
Battery charger not included in the delivery.
