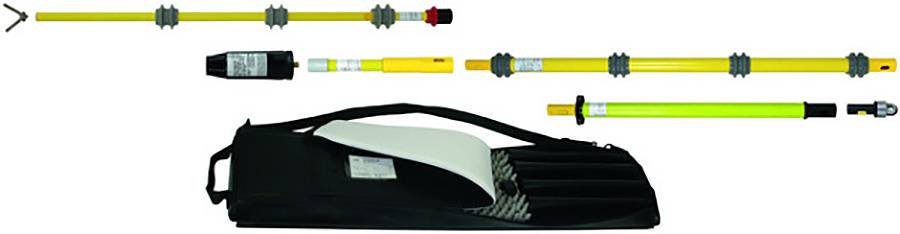

DEHN 767131 Voltage tester Acoustic
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Application area: Interior and open air systems
- Category: S.
- Display type: Acoustic and visual
- Nominal voltage 110.0-132.0 kV
- Total length 3440.0-3440.0 mm
- Product type
Voltage tester
- Reading type
Voltage testing
- Display
Acoustic
- V AC reading range
110.0 up to 132.0 kV
Manufacturer's standards (no certificate)
- V AC reading range (max.)
132.0 kV
- V AC reading range (min.)
110.0 kV
- Length
3440.0 mm
- Type
767131
- Type
1-pin
1-pole
Switchgear and power cable for overhead lines
AC
Acoustic and optic
50.0-50.0 Hz
880 mm
S
110.0-132.0 kV
Interior and outdoor installations
TRUE
TRUE
3440.0-3440.0 mm
TRUE
Documents & Downloads
Datasheet
Datasheet 3801892 DEHN 767131 Voltage tester Acoustic
User & Safety Instructions
User & Safety Instructions 3801892 DEHN 767131 Voltage tester Acoustic
Description
Capacitive voltage tester set PHE III as a connected model according to DIN VDE 0682-411 (EN/IEC 61243-1) for determining all poles of freedom from voltage at the work place according to DIN VDE 0105-100 (EN 50110-1) on three-phase systems 110 . 132 kV / 50 Hz and centrally grounded railway power lines 110 . 132 kV / 16.7 Hz without switching. Can also be used in precipitation.
