Technical specifications

Application area: Interior and open air systems
Category: S.
Display type: Acoustic and visual
Nominal voltage 60.0-110.0 kV
Total length 2840.0-4470.0 mm

Product type: Voltage tester

Reading type: Voltage testing

Display: Visual

: Manufacturer's standards (no certificate)

Type: 769712

Type: 1-pin

: 1-pole

: Switchgear and power cable for overhead lines

: AC

: Acoustic and optic

: 50.0-50.0 Hz

: 880 mm

: S

: 60.0-110.0 kV

: Interior and outdoor installations

: TRUE

: TRUE

: 2840.0-4470.0 mm

: TRUE

Documents & Downloads

Datasheet

Datasheet 3801899 DEHN 769712 Voltage tester Visual

User & Safety Instructions

User & Safety Instructions 3801899 DEHN 769712 Voltage tester Visual

Description

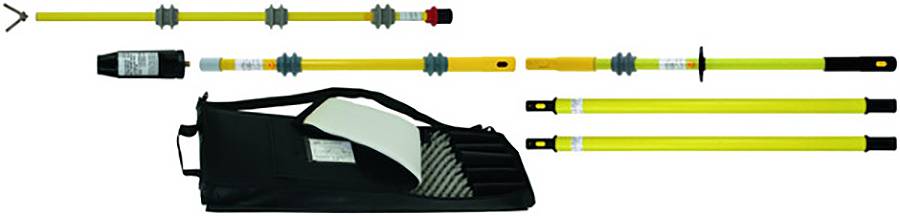

Capacitive voltage tester set PHE III as a connected model according to DIN VDE 0682-411 (EN/IEC 61243-1) with universal checking of freedom from voltage at the work place according to DIN VDE 0105-100 (EN 50110-1) in electrical systems. Category ""S"" for switchboards and overhead wires. Can also be used in precipitation. With visual and acoustic display and self-test device, including transport container.

This text is machine translated.
