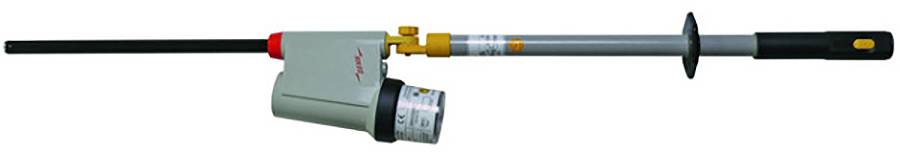

DEHN 783120 Voltage tester Acoustic
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Application area: Interior and open air systems
- Category: S.
- Display type: Acoustic and visual
- Nominal voltage 20.0-20.0 kV
- Total length 1230.0-1230.0 mm
- Product type
Voltage tester
- Reading type
Voltage testing
- Display
Acoustic
Manufacturer's standards (no certificate)
- Length
1230.0 mm
- Type
783120
- Type
1-pin
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3801781 DEHN 783120 Voltage tester Acoustic
User & Safety Instructions
User & Safety Instructions 3801781 DEHN 783120 Voltage tester Acoustic
Description
Capacitive voltage tester PHE4 according to DIN VDE 0682-411 (EN/IEC 61243-1) for determining all poles of freedom from voltage at the working place according to DIN VDE 0105-100 (EN 50110-1) in electrical systems. Category ""S"" for switchboards and overhead wires. With universal gear bushing according to DIN VDE 0682-211 (EN/IEC 60832). Can also be used in precipitation. With visual and acoustic display and self-test device of all active parts including test tip. Short transport length by removable insulating rod with plug-in coupling for manual extension.
