DEHN 783141 Voltage tester Acoustic
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Application area: Interior and open air systems
- Category: S.
- Display type: Acoustic and visual
- Nominal voltage 3.0-10.0 kV
- Total length 1440.0-1440.0 mm
- Product type
Voltage tester
- Reading type
Voltage testing
- Display
Acoustic
- V AC reading range
3.0 up to 10.0 kV
Manufacturer's standards (no certificate)
- V AC reading range (max.)
10.0 kV
- V AC reading range (min.)
3.0 kV
- Length
1440.0 mm
- Type
783141
- Type
1-pin
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3801792 DEHN 783141 Voltage tester Acoustic
User & Safety Instructions
User & Safety Instructions 3801792 DEHN 783141 Voltage tester Acoustic
Description

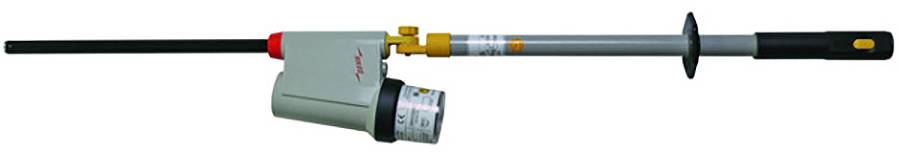

Capacitive voltage tester PHE4 according to DIN VDE 0682-411 (EN/IEC 61243-1) for determining all poles of freedom from voltage at the working place according to DIN VDE 0105-100 (EN 50110-1) in electrical systems. Category ""S"" for switchboards and overhead wires. With universal gear bushing according to DIN VDE 0682-211 (EN/IEC 60832). Can also be used in precipitation. With visual and acoustic display and self-test device of all active parts including test tip. Short transport length by removable insulating rod with plug-in coupling for manual extension.
