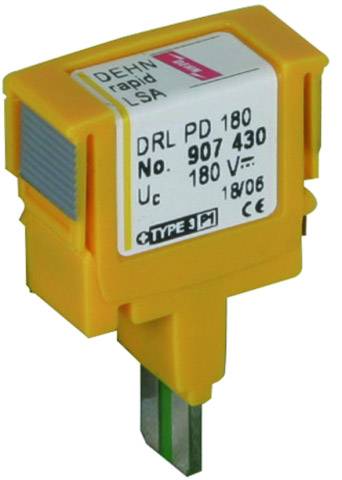

DEHN 907430 DRL PD 180 Surge arrester Surge protection for: Switchboards 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS STRAIN 907 430 surge arresters strain rapid LSA-ISDN
- For the highest transfer rates
- Energy-coordinated to S DRL plug-in magazine
- Can be used after the lightning protection zones concept at the interfaces 1 - 2 and higher
Technical specifications
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
10 kA
- Nominal voltage
24 V
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
907430
- Type
3
- Dim
(W x H x D) 9.4 x 22 x 33.4 mm
- Width
9.4 mm
- Height
22 mm
- Depth
33.4 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967867 DEHN 907430 DRL PD 180 Surge arrester Surge protection for: Switchboards 10 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967867 DEHN 907430 DRL PD 180 Surge arrester Surge protection for: Switchboards 10 kA 1 pc(s)
Description
Protection plug 1DA energetically coordinates to S DRL plug-magazine as a single-stage terminals protection. Low voltage protection level wire-wire and a built-in overcurrent protection for ADSL, ISDN UK0 or a/b-wires. Mounting with EF 10 S DRL. Installation only in conjunction with the S DRL plug-Magazine is recommended.
