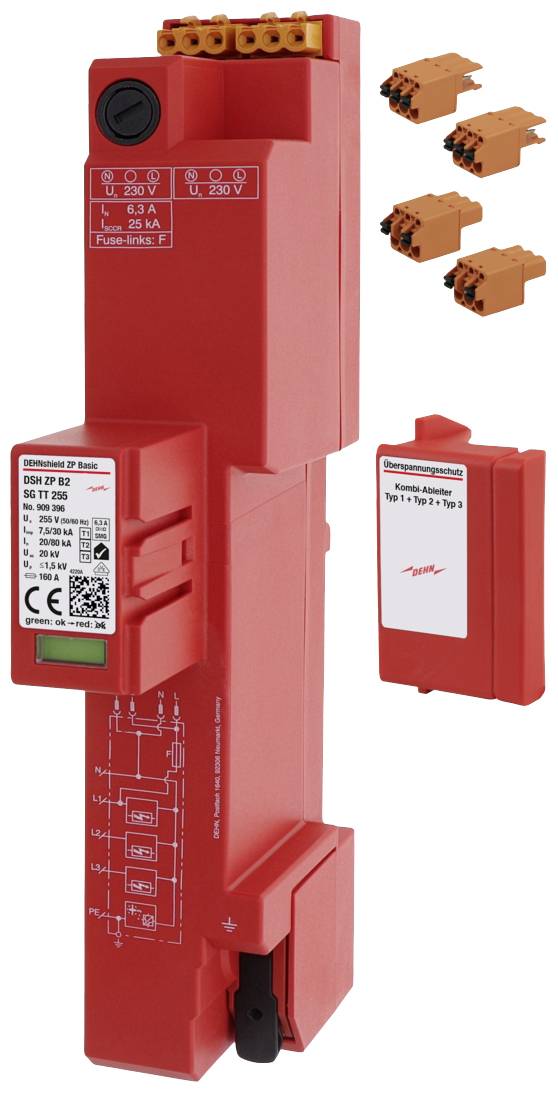

DEHN 909396 DSH ZP B2 SG TT 255 Surge arrester Surge protection for: 40 mm busbar 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Surge arrester
- Surge protection for
40 mm busbar
- Manufacturer part #
909396
- Factory colour
Multicolour
- Content
1 pc(s)
- Number of pins
4
- Weight
0.52
Busbar
30 kA
4
FALSE
25 kA
255 V
230 V
Type 1 + 2
1.5 kV
Optic
IP30
1.5 kV
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2750901 DEHN 909396 DSH ZP B2 SG TT 255 Surge arrester Surge protection for: 40 mm busbar 1 pc(s)
Information
Information 2750901 DEHN 909396 DSH ZP B2 SG TT 255 Surge arrester Surge protection for: 40 mm busbar 1 pc(s)

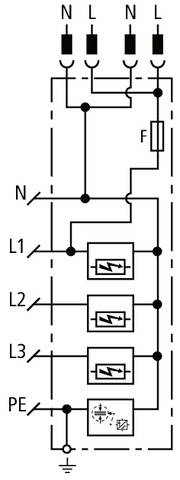

Circuit diagramm
Circuit diagramm 2750901 DEHN 909396 DSH ZP B2 SG TT 255 Surge arrester Surge protection for: 40 mm busbar 1 pc(s)
Description
Tested Combi-conductor type 1+type 2+type 3 according to DIN EN 61643-11 for TT- and TN-S-systems (3+1-switching) incl. surge protected 230 V voltage supply (N and L) incl. Replacement fuse in each case for RFZ / APZ according to VDE-AR-N 4100; completely installable without tools by Click+Power connection technology for the 40 mm busbar system and push-in earthing terminal; for use in the main power supply system according to DIN VDE 0100-443 in buildings (also with feed line, without external lightning protection system). A matching cover clip according to DIN VDE 0603-1 for each conventional meter field, plus 2 x sockets and 2 x plugs (without connecting cables) for wiring the intelligent measuring system according to VDE-AR 4100 is included in the delivery.
