DEHN 909704 DGA GF TV Surge protection module Surge protection for: N (Coax) 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS surge suppressor 909704 Strain Gate DG GF TV
- For analogue and digital TV, return-channel compatible
- Integrated measured output at the conductors FF and Gff
Technical specifications
- Product type
Surge protection module
- Surge protection for
N (Coax)
- Leakage current
10 kA
- Nominal voltage
60 V
- Operating temperature
-40 °C - +80 °C
IP30
- Manufacturer part #
909704
- Length
49 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968023 DEHN 909704 DGA GF TV Surge protection module Surge protection for: N (Coax) 10 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968023 DEHN 909704 DGA GF TV Surge protection module Surge protection for: N (Coax) 10 kA 1 pc(s)
Description

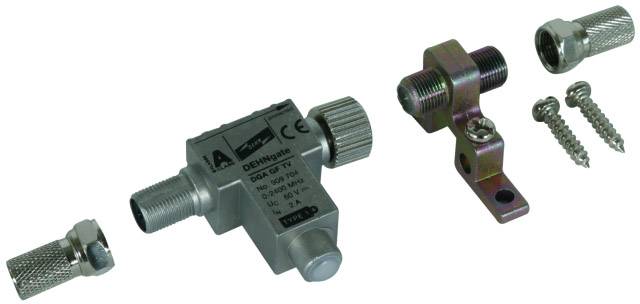

Remote feed fit for lightning arresters with F-connection for 75 Ohm SAT and digital head-end systems. The arrester corresponds to the requirements of class A according to EN 50 083-2 increased shielding. Suitable for space-saving installation in all common TV and SAT-applications.
