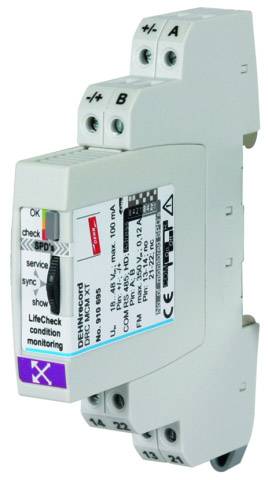

DEHN 910695 DRC MCM XT Surge protection control unit Surge protection for: Switchboards 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS STRAIN 910695 test device expansion record DRC MCM XT
- Condition-based monitoring of conductors with life check
- Monitors up to 10 conductor (40) permanent signal wires
- Minimal wiring
- Remote signalling via FM-contact or optional RS485-interface
Technical specifications
- Product type
Surge protection control unit
- Surge protection for
Switchboards
- Nominal voltage
18 V
48 V
- Manufacturer part #
910695
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967889 DEHN 910695 DRC MCM XT Surge protection control unit Surge protection for: Switchboards 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967889 DEHN 910695 DRC MCM XT Surge protection control unit Surge protection for: Switchboards 1 pc(s)
Description
Condition Monitoring Unit DEHNrecord, top-hat rail device with integrated LifeCheck-sensor for the status-oriented monitoring of max. 10 BLITZDUCTOR XT with LifeCheck. Optical conductor status reporting via 3-color LED combined with FM signaling (NC or NO). Optionally, the free PC software Status Display and Service Console can be operated via an RS485 interface converter. The software enables a PC-supported remote display of the state of all monitored arresters.
