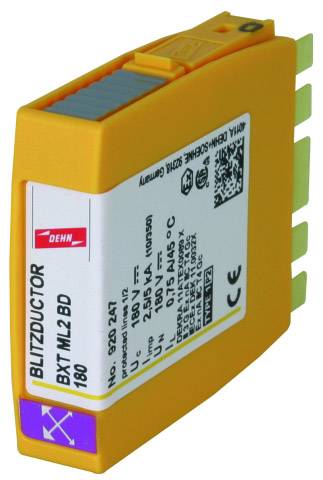

DEHN 920247 BXT ML2 BD 180 Lightning conductor Surge protection for: Switchboards 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS Combination arrester module 920247 BXT ML 2BD 180
- Life check arrester monitoring
- Optimal protection for 1 pair
- Can be used after the lightning protection zones concept at the interfaces 0A - 2 and higher
Technical specifications
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
20 kA
- Nominal voltage
180 V
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
920247
- Type
1
- Dim
(W x H x D) 12 x 45 x 51 mm
- Width
12 mm
- Height
45 mm
- Depth
51 mm
- Content
1 pc(s)
- Weight
0
On basic element
TRUE
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968025 DEHN 920247 BXT ML2 BD 180 Lightning conductor Surge protection for: Switchboards 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968025 DEHN 920247 BXT ML2 BD 180 Lightning conductor Surge protection for: Switchboards 20 kA 1 pc(s)
Description
Space-saving Combination arrester module with life check for the protection of 1 double wire ground potential-free symmetric interfaces, either direct or indirect shield earthing. Life check detects thermal or electrical overload conditions according to which the arrester must be replaced. The display is done contact by means of strain record LC/SCM/MCM.
