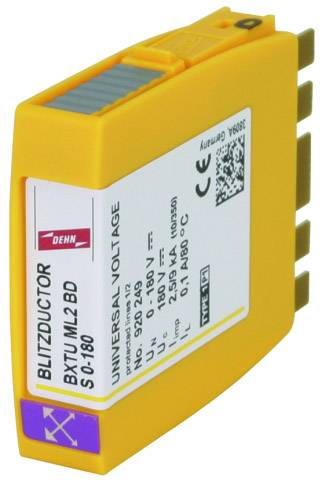

DEHN 920249 BXTU ML2 BD S 0-180 Lightning conductor Surge protection for: Switchboards 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Combination arrester Blitzductor XTU DEHN + SONS BXTU ML 2BD S0-module
- Universal voltage-type with activsense Vsense-Technologie
- Can be used after the lightning protection zones concept at the interfaces 0A - 2 and higher
- With integrated life check monitoring
Technical specifications
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
20 kA
- Nominal voltage
180 V
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
920249
- Type
1
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967869 DEHN 920249 BXTU ML2 BD S 0-180 Lightning conductor Surge protection for: Switchboards 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967869 DEHN 920249 BXTU ML2 BD S 0-180 Lightning conductor Surge protection for: Switchboards 20 kA 1 pc(s)
Description
Space-saving Combination arrester module with activsense vsense-technologie with life check for the protection of 1 double loader with either direct or indirect shield earthing. Automatically detects the operating voltage of the wanted signal and adjusts the protection level optimally to them.
