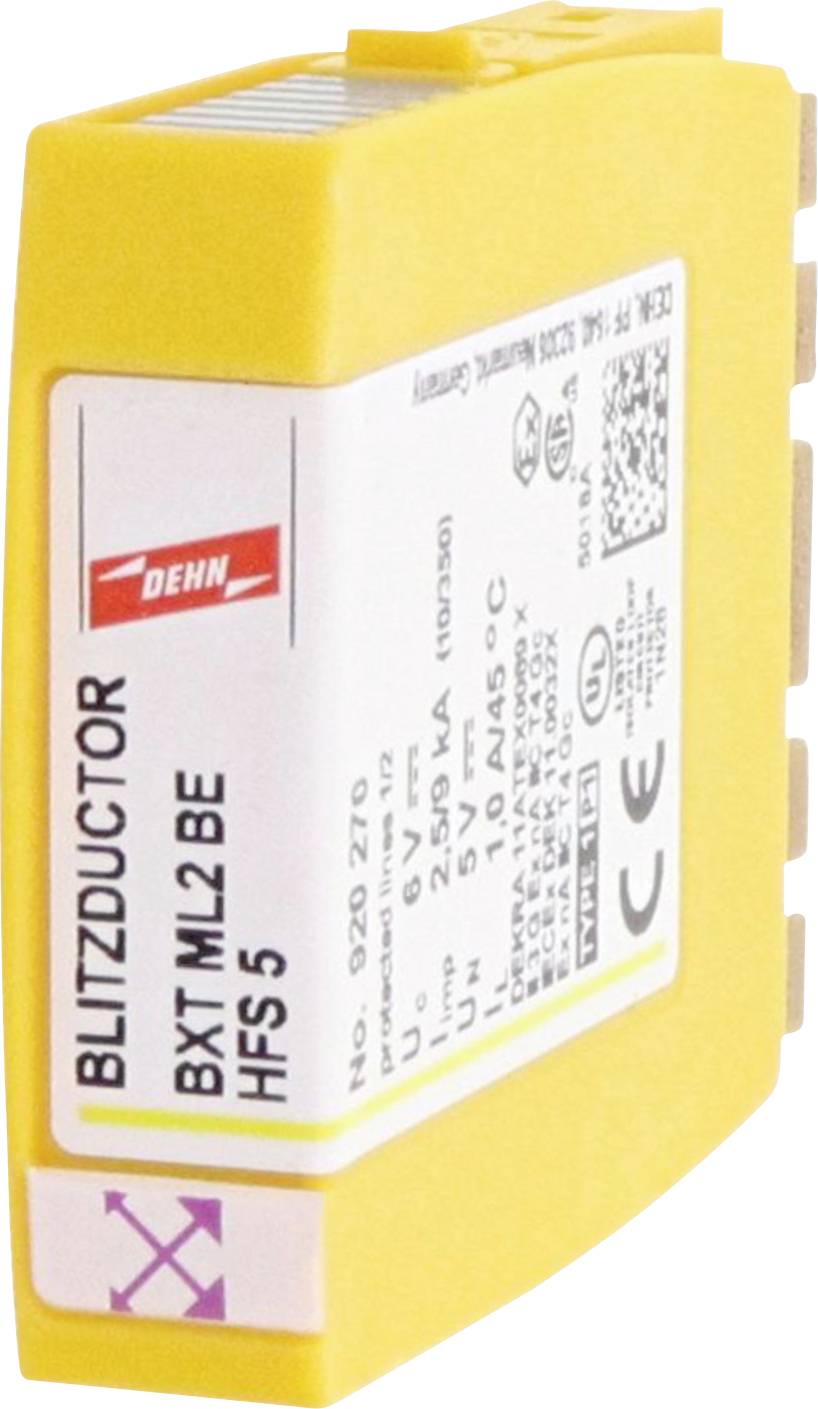

DEHN 920270 BXT ML2 BE HFS 5 Lightning conductor 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Arrester monitoring: Yes
- Surge current 9 kA
- Explosion-tested version: Yes
- Cut-off frequency 100 MHz
- Maximum continuous voltage AC 4.2 V.
- Highest continuous voltage DC 6 V
- With remote signaling contact: No.
- Mounting type: On base element
- Rated load current 1 A.
- Protection level wire/wire 11 V
- Protective level wire/earth: 11 V
- Product type
Lightning conductor
- Leakage current
20 kA
- Nominal voltage
5 V DC
- Operating temperature
-40 to 80 °C
- Manufacturer part #
920270
- Compatible with (details)
Information/MSR technology
- Content
1 pc(s)
On basic element
TRUE
IP20
- UKCA
not relevant
