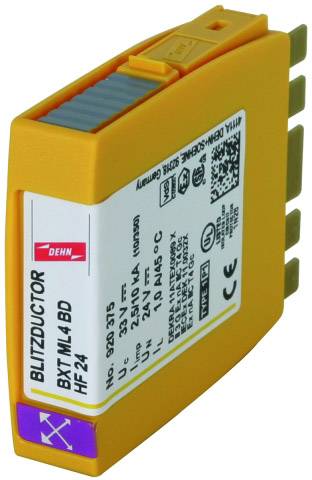

DEHN 920375 BXT ML4 BD HF 24 Lightning conductor 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Lightning conductor
- Leakage current
20 kA
- Nominal voltage
24 V
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
920375
- Dim
(W x H x D) 12 x 45 x 51 mm
- Width
12 mm
- Height
45 mm
- Depth
51 mm
- Content
1 pc(s)
- Weight
0.03
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1967859 DEHN 920375 BXT ML4 BD HF 24 Lightning conductor 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967859 DEHN 920375 BXT ML4 BD HF 24 Lightning conductor 20 kA 1 pc(s)
Description
Space-saving Combination arrester module with life check for protection of 2 double wires ground potential-free high-frequency bus systems or video transmissions. Life check detects thermal or electrical overload conditions according to which the arrester must be replaced. The display is done contact with the help of DEHNrecordLC/SCM/MCM.
