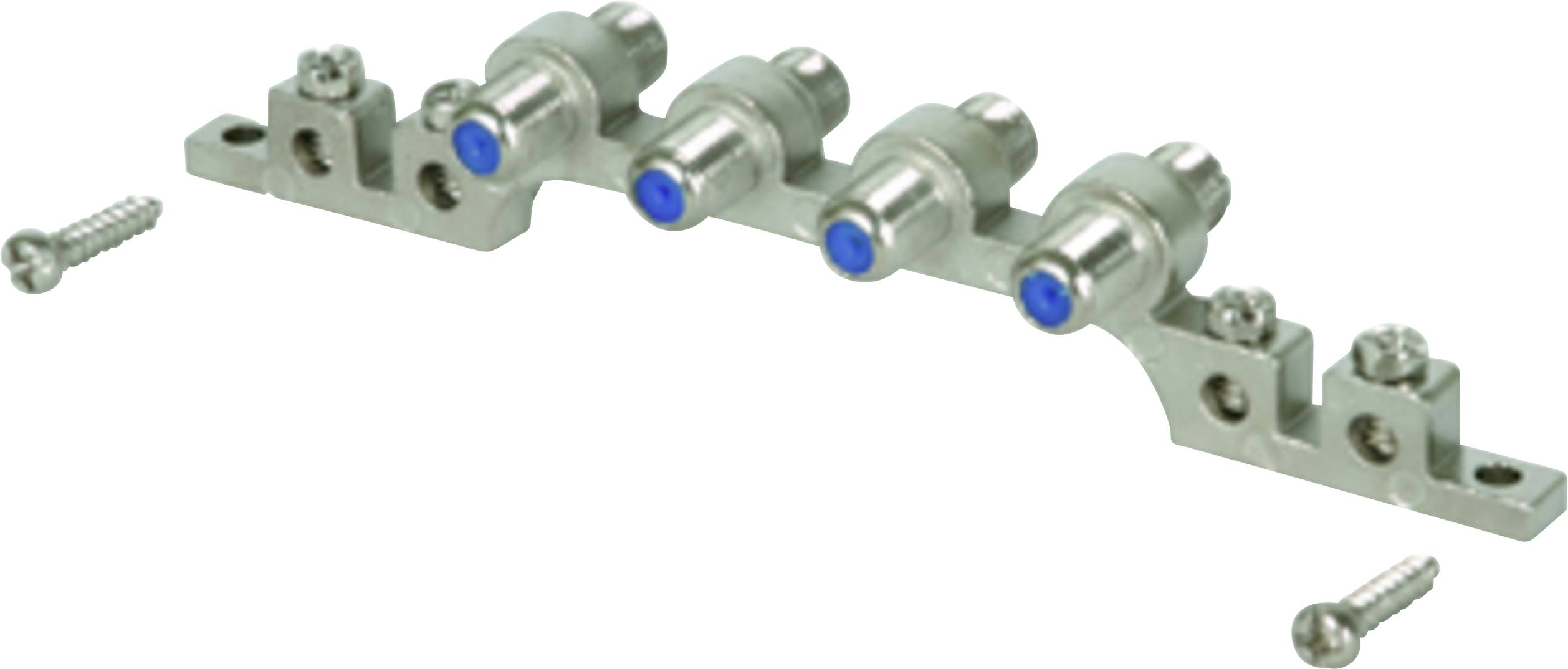

Metallic distribution block with four blue terminals, featuring two small screws attached.

Image similar

Metallic distribution block with four blue terminals, featuring two small screws attached.

Image similar

DEHN

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Maximum continuous voltage DC: 65 V
Nominal current: 2 A
D1 Flash surge current (10/350 µs): 10 kA
Frequency range: 0-2400 MHz
Insertion loss: Typically 0.2 dB
Return loss: ≥ 20 dB
Shielding measure 30-2400 MHz (Class A): ≥ 90 dB
Wave resistance: 75 Ohm
Operating temperature range (TU ): -40 °C ... +70 °C
Mounting on: Wall
Connection: Input / output F socket / F socket
Earthing via: 4x Screw connection for wires up to max. Ø4 mm
Housing material: Metal
Color: Blank

Product type: Earth block

Manufacturer part #: 929095

Content: 1 pc(s)

Weight: 0

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2303471 DEHN 929095 EB 4 F Earth block 1 pc(s)
