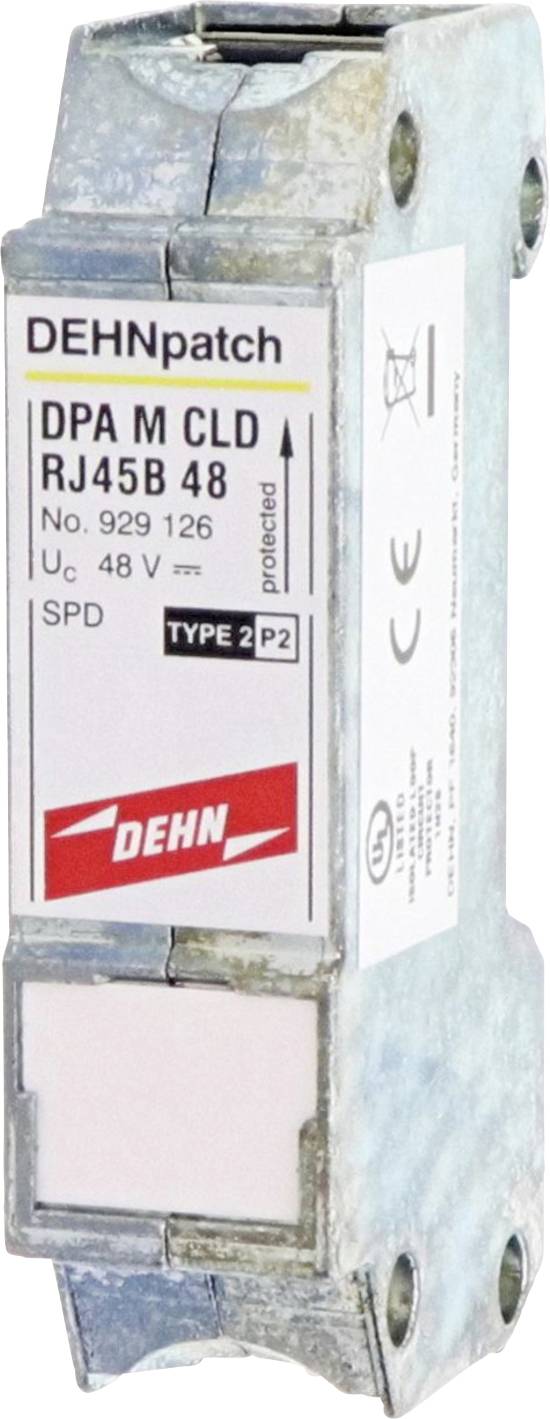

DEHN 929126 DPA M CLD RJ45B 48 Surge arrester 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Connection: RJ45
- Cut-off frequency 100 MHz
- Highest continuous voltage AC 34 V.
- Highest continuous voltage DC: 57 V
- With remote signaling contact: No.
- Mounting type: DIN rail 35 mm
- Rated load current 1 A.
- Protective level wire/wire 600 V
- Protective level wire/earth 500 V
- Product type
Surge arrester
- Leakage current
10 kA
- Nominal voltage
48 V DC
- Manufacturer part #
929126
- Factory colour
Multicolour
- Compatible with (details)
Information/MSR technology
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2303346 DEHN 929126 DPA M CLD RJ45B 48 Surge arrester 10 kA 1 pc(s)
