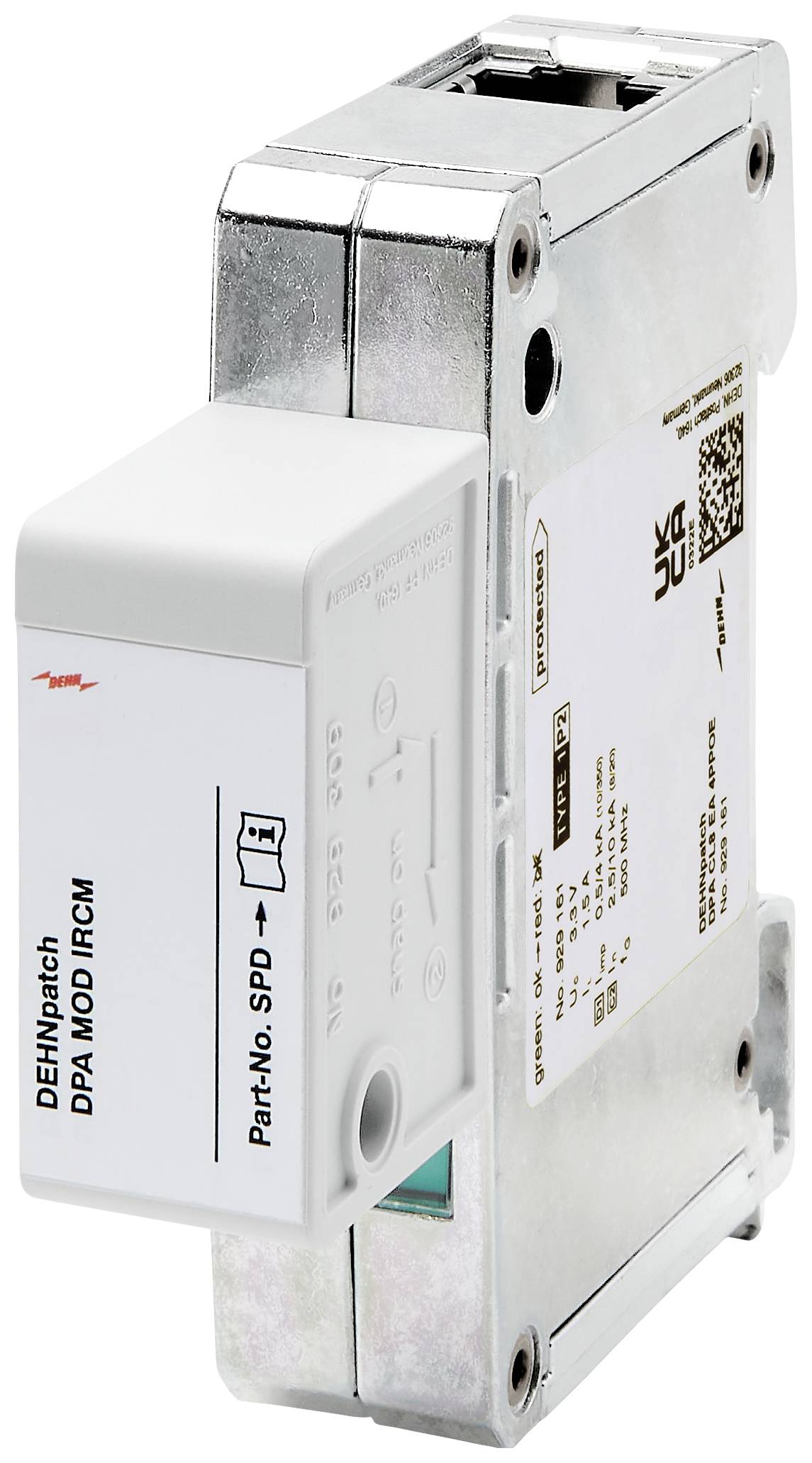

DEHN 929161 DPA CL8 EA 4PPOE Lightning conductor 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Dehn combination arrester 929161
- 19 mm widthRJ45 connection technologyWith status display
Technical specifications
- Nominal voltage (UN) 3.3 VHighest continuous voltage DC (UC): 3.3 V.Highest continuous voltage DC Pa-Pa (PoE) (UC): 58 V.Nominal current (IL) 1.5 A.D1 Flash surge current (10/350 μs) total (Iimp): 4 kAC2 nominal discharge surge current (8/20 μs) Ad-Ad (in): 150 A.C2 Rated surge current (8/20 μs) Ad-PG (in): 2.5 kAC2 nominal surge current (8/20 μs) total (in): 10 kAC2 nominal discharge surge current (8/20 μs) Pa-Pa (PoE) (in): 150 A.Protection level Ad-Ad at in C2 (UP): ≤ 100 V.Protection level Ad-PG at in C2 (UP): ≤ 600 V.Protection level Pa-Pa at in C2 (PoE) (UP): ≤ 100 V.Protection level Ad-Ad at 1 kV/μs C3 (UP): ≤ 140 V.Protection level Ad-PG at 1 kV/μs C3 (UP): ≤ 500 V.Protection level Pa-Pa at 1 kV/μs C3 (PoE) (UP): ≤ 170 V.Cutoff frequency (FG) 500 MHzCapacity Ad-Ad (C): ≤ 15 pFCapacity Ad-PG (C): ≤ 40 pFMounting: On 35 mm DIN rail according to EN 60715Connection input / output: RJ45 socket / RJ45 socketOccupancy: 1/2, 3/6, 4/5, 7/8Earthing: Over 35 mm DIN rail in accordance with EN 60715Housing material: Die-cast zincColor: BlankWeight 180 g
- Product type
Lightning conductor
- Nominal voltage
3.3 V
- Operating temperature
-40 °C to 80 °C
IP20
- Manufacturer part #
929161
- Factory colour
Multicolour
- Standards
GHMT / IEC 61643-21 / EN 61643-21
- Dim
(W x H x D) 19 x 75 x 51 mm
- Width
19 mm
- Height
75 mm
- Depth
51 mm
- Content
1 pc(s)
- Weight
0.19
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2589587 DEHN 929161 DPA CL8 EA 4PPOE Lightning conductor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2589587 DEHN 929161 DPA CL8 EA 4PPOE Lightning conductor 1 pc(s)
Description
Universal, space-saving combination arrester in 19 mm width and RJ45 connection technology with status display for easy maintenance. Protection of applications in structured cabling according to class EA up to 500 MHz, e.g. Industrial Ethernet, data distribution, digital camera systems, power over Ethernet (IEEE 802.3 compliant to 4PPoE) and generally Ethernet-based interfaces. Protection of all wire pairs by powerful gas discharge conductors and protective diodes between the signal wires and wire pairs. Fully shielded adapter version with RJ45 sockets for DIN rail mounting. With housing-side additional screw connection for the optional earth connection.
