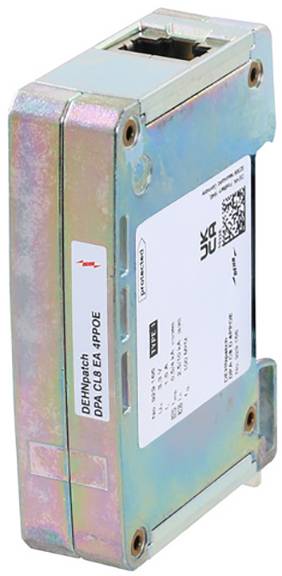

DEHN 929166 DPA C8 D 4PPOE Surge arrester 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Dehn lightning current conductor 929166
- 19 mm widthRJ45 connection technologyFor lightning protection potential equalization
Technical specifications
- Nominal voltage (UN) 3.3 VHighest continuous voltage DC (UC): 3.3 V.Highest continuous voltage DC Pa-Pa (PoE) (UC): 58 V.Nominal current (IL) 1.5 A.D1 Flash surge current (10/350 μs) total (Iimp): 4 kAC2 nominal discharge surge current (8/20 μs) Ad-Ad (in): 2.5 kAC2 Rated surge current (8/20 μs) Ad-PG (in): 2.5 kAC2 nominal surge current (8/20 μs) total (in): 10 kAC2 nominal discharge surge current (8/20 μs) Pa-Pa (PoE) (in): 2.5 kAProtection level Ad-Ad at in C2 (UP): ≤ 700 V.Protection level Ad-PG at in C2 (UP): ≤ 600 V.Protection level Pa-Pa at in C2 (PoE) (UP): ≤ 800 V.Protection level Ad-Ad at 1 kV/μs C3 (UP): ≤ 700 V.Protection level Ad-PG at 1 kV/μs C3 (UP): ≤ 600 V.Protection level Pa-Pa at 1 kV/μs C3 (PoE) (UP): ≤ 800 V.Cut-off frequency (FG): 100 MHzCapacity Ad-Ad (C): ≤ 10 pFCapacity Ad-PG (C): ≤ 25 pFMounting: 35 mm DIN rail according to EN 60715Input/output connection: RJ45 socket/RJ45 socketOccupancy: 1/2, 3/6, 4/5, 7/8Earthing: Over 35 mm DIN rail in accordance with EN 60715Housing material: Die-cast zincColor: BlankWeight: 167 g
- Product type
Surge arrester
- Nominal voltage
3.3 V
- Operating temperature
-40 °C to 80 °C
IP20
- Manufacturer part #
929166
- Standards
IEC 61643-21 / EN 61643-21

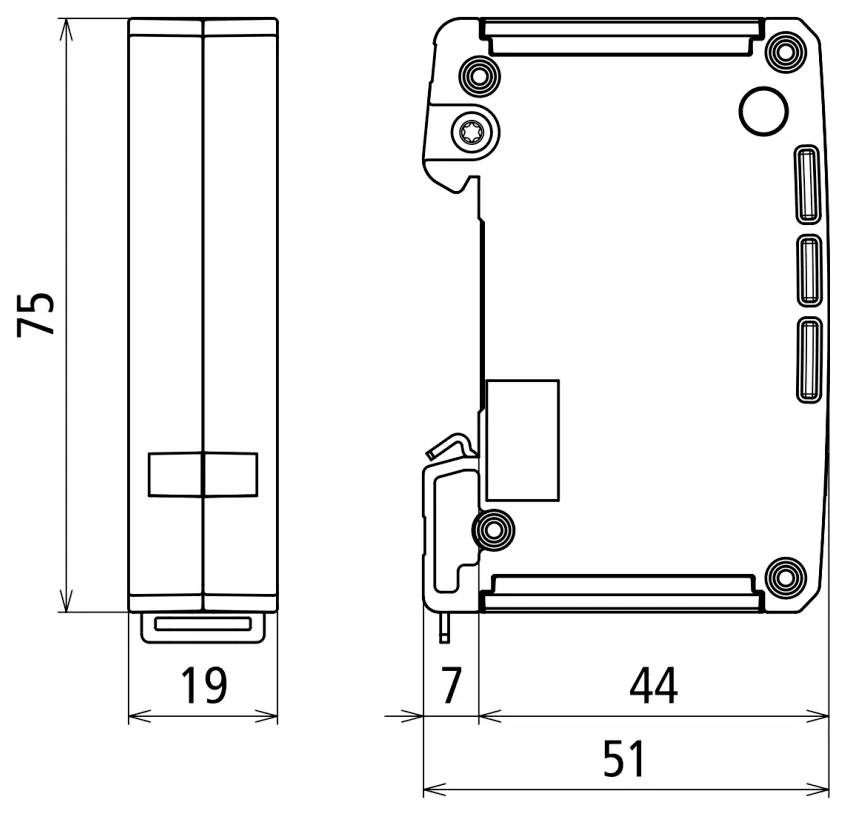

- Dim
(W x H x D) 19 x 75 x 51 mm
- Width
19 mm
- Height
75 mm
- Depth
51 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2589588 DEHN 929166 DPA C8 D 4PPOE Surge arrester 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2589588 DEHN 929166 DPA C8 D 4PPOE Surge arrester 1 pc(s)
Description

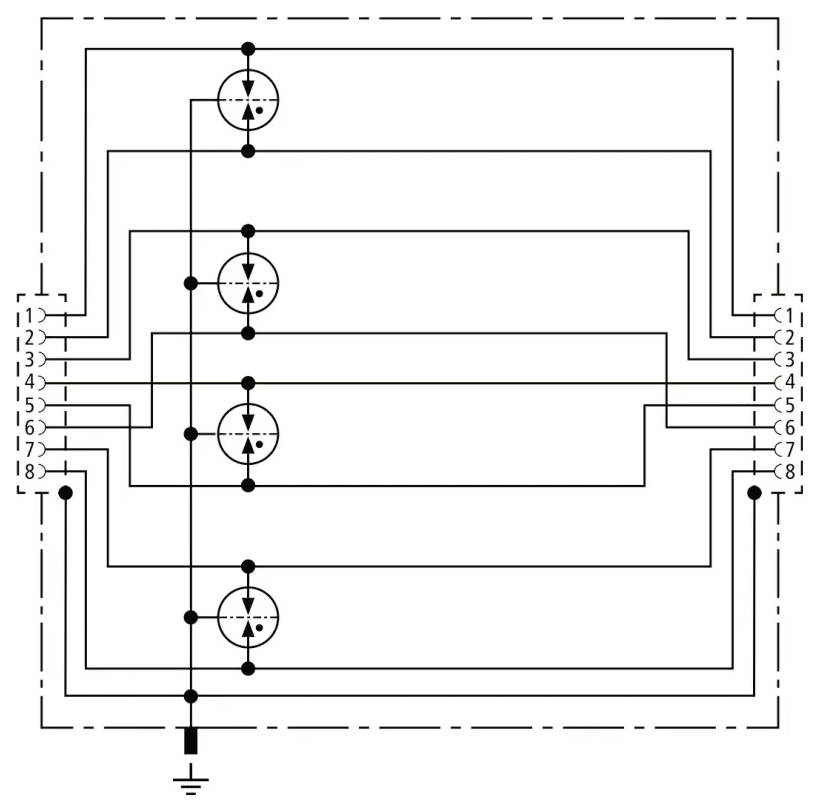

Universal, space-saving lightning current arrester in 19 mm width and RJ45 connection technology for lightning protection potential equalization. Protection of applications in structured cabling according to class D up to 100 MHz, e.g. Industrial Ethernet, data distributors, digital camera systems, power over Ethernet (IEEE 802.3 compliant to 4PPoE) and generally Ethernet-based interfaces. Protection of all wire pairs by powerful gas discharge conductors. Fully shielded adapter version with RJ45 sockets for DIN rail mounting. With housing-side additional screw connection for optional earth connection.
