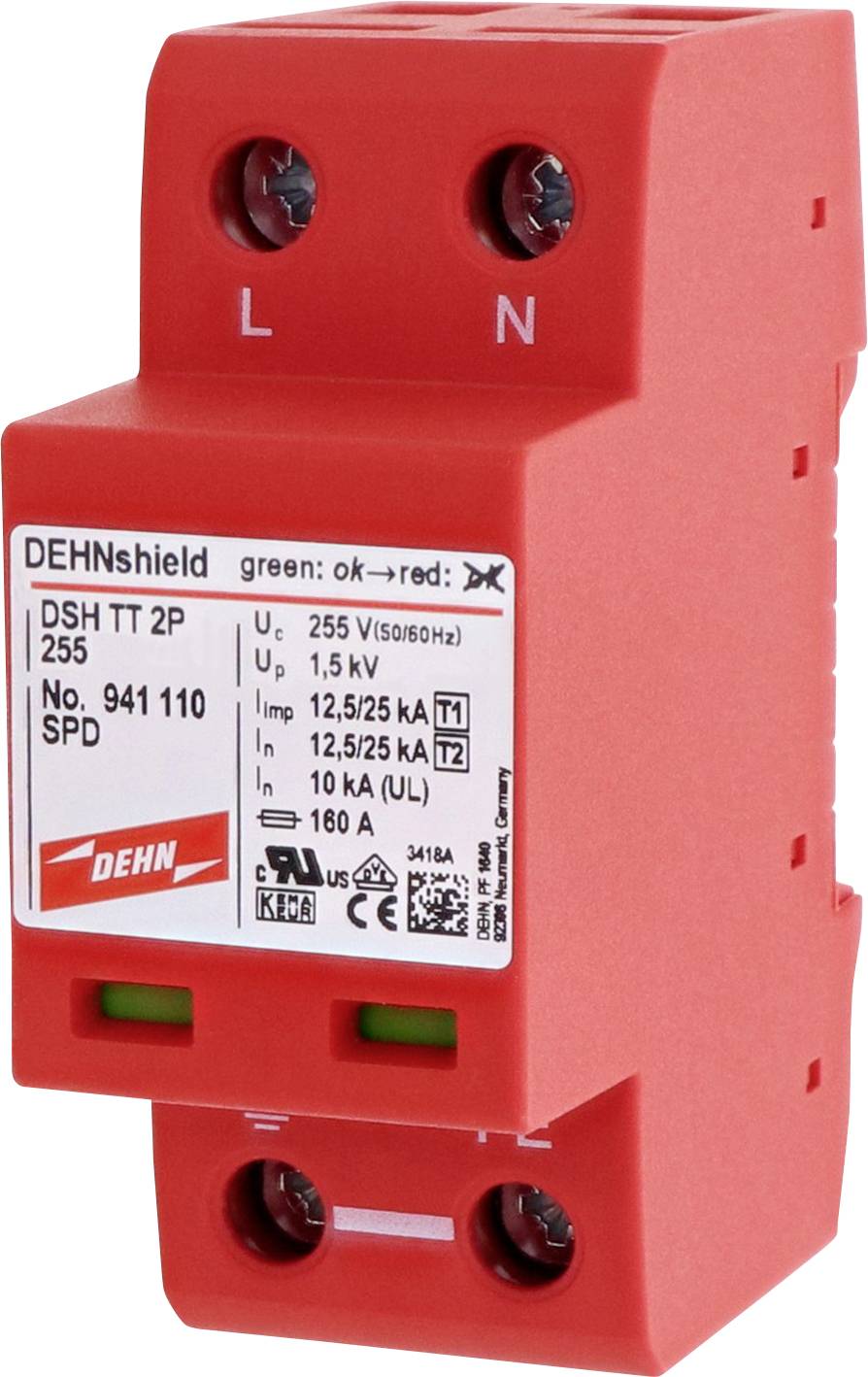

DEHN 941110 DSH TT 2P 255 Lightning conductor 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Size: 2 HP
- Lightning surge current 25 kA
- Energy-coordinated protective effect to the terminal: Yes
- Subsequent current erasability: 25 kA
- Maximum continuous voltage AC 255 V.
- Integrated fuse: No.
- Max. Conductor cross-section flexible fine-strand 25 mm²
- Max. Conductor cross-section rigid single/multi-strand 35 mm²
- Mounting type: DIN rail 35 mm
- Mains form TN, TT
- Number of poles: 2
- Protection level L-N: 1.5 kV
- Protection level N-PE: 1.5 kV
- Signaling on the device: Optical
- Specific energy: 156.25 kJ/ohm
- Product type
Lightning conductor
- Nominal voltage
230 V AC
- Operating temperature
-40 to 80 °C
- Manufacturer part #
941110
- Type
1 + 2
- Compatible with (details)
Energy Engineering
- Standards
EN 61643-11
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
2
IP20
- UKCA
not relevant
