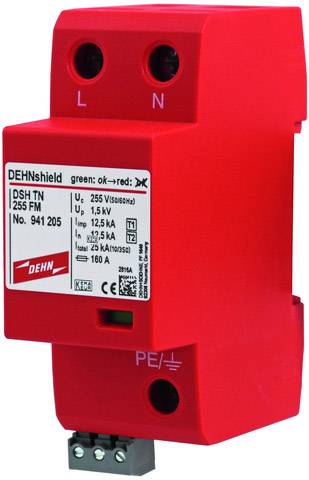

DEHN 941205 DSH TN 255 FM Lightning conductor Surge protection for: Switchboards 25 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS Combination arrester expansion shield DSH TN255 Type 1+2
- Ready to connect, application-optimized Combination arrester type 1 + Type 2 on radio link base
- Space-saving radio link technology with only 1 TE/pin allows compact design
- Allows compact lightning protection potential compensation including terminals protection
Technical specifications
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
25 kA
- Nominal voltage
230 V
- Pick-up time (details)
<100 ns
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
941205
- Type
1 + 2
- Standards
KEMA, VDE
- Dim
(W x H x D) 36 x 90 x 62 mm
- Width
36 mm
- Height
90 mm
- Depth
62 mm
- Content
1 pc(s)
- Number of pins
2
- Weight
0.28
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967987 DEHN 941205 DSH TN 255 FM Lightning conductor Surge protection for: Switchboards 25 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967987 DEHN 941205 DSH TN 255 FM Lightning conductor Surge protection for: Switchboards 25 kA 1 pc(s)
Description
Multi-pole, application-optimized combination surge arresters, type 1 + Type 2 after stretching shield EN 61643 on radio link basis. Space-saving radio link technology with only 1 TE/pin allows compact design. For the protection of residential buildings and for use in special applications. Enables terminals protection. For protection against overvoltages, even in direct lightning strikes. Can be used after the lightning protection zones concept at the interfaces 0A - 2.
