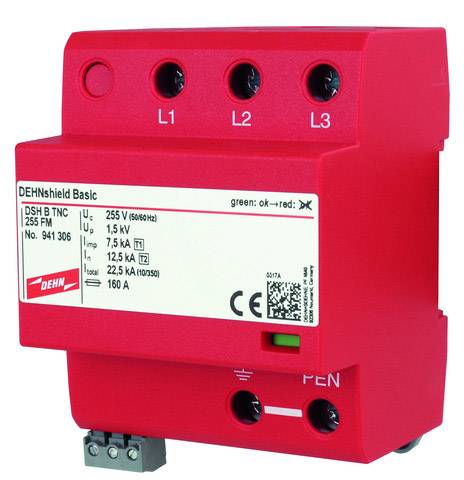

DEHN 941306 DSH B TNC 255 FM Lightning conductor Surge protection for: Switchboards 22.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Expansion Shield DSH B TNC 255 FM TN-C
- Ready to connect, application-optimized Combination arrester type 1 + Type 2 on radio link base
- Space-saving radio link technology with only 1 TE/pin allows compact design
- Meets the minimum requirements according to the DIN VDE 0100-534 for the nominal discharge capacity in as well as the lightning current discharge capacity iimp with free cable infeeds
Technical specifications
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
22.5 kA
- Nominal voltage
230 V
400 V
- Pick-up time (details)
<100 ns
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
941306
- Type
1 + 2
- Factory colour
Multicolour
- Standards
VDE
- Dim
(W x H x D) 72 x 90 x 62 mm
- Width
72 mm
- Height
90 mm
- Depth
62 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1967988 DEHN 941306 DSH B TNC 255 FM Lightning conductor Surge protection for: Switchboards 22.5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967988 DEHN 941306 DSH B TNC 255 FM Lightning conductor Surge protection for: Switchboards 22.5 kA 1 pc(s)
Description
Multi pin combination surge arresters, type 1 + Type 2 Expansion Shield Basic according to EN 61643 on radio link basis. Space-saving radio link technology with only 1 TE/pin allows compact design. For the protection of residential buildings when retrofitting or renovation. Enables terminals protection. Meets all requirements of the DIN VDE 0100-534-443 and DIN VDE 0100. Can be used directly at the restaurant of the electrical system.
