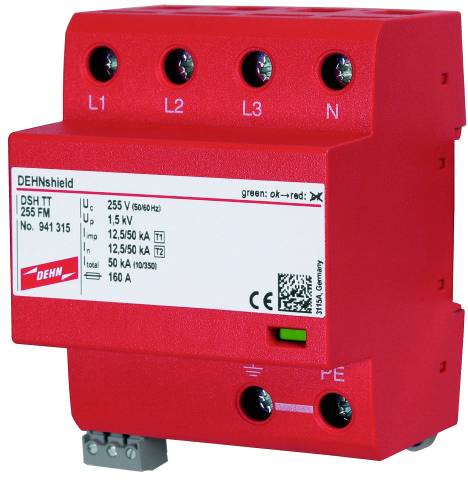

Red surge protection device with four terminals and technical labelling, used for safeguarding electrical systems.

Image similar

Red surge protection device with four terminals and technical labelling, used for safeguarding electrical systems.

A red surge protection device with multiple connection terminals, labelled 'DEHNshield DSH TT 255 FM', displays various technical specifications.

1/2

Image similar

DEHN

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Size: 4 HP
Surge current 50 kA
Energy-coordinated protective effect to the terminal: Yes
Remote signaling: Yes
Subsequent current erasability: 25 kA
Maximum continuous voltage AC 255 V.
Integrated fuse: No.
Max. Conductor cross-section flexible fine-strand 25 mm²
Max. Conductor cross-section rigid single/multi-strand 35 mm²
Mounting type: DIN rail 35 mm
MAINS FORM TN-S, TT
Number of pins: 4
Protection level L-N: 1.5 kV
Protection level N-PE: 1.5 kV
Signaling on the device: Optical
Specific energy 625 kJ/ohm

Compatible with (details): Energy Engineering

Packaging type: Piece

Nominal voltage: 230 V AC

Number of pins: 4

Type: 1 + 2

Operating temperature: -40 to 80 °C

Standards: EN 61643-11

UKCA: yes
