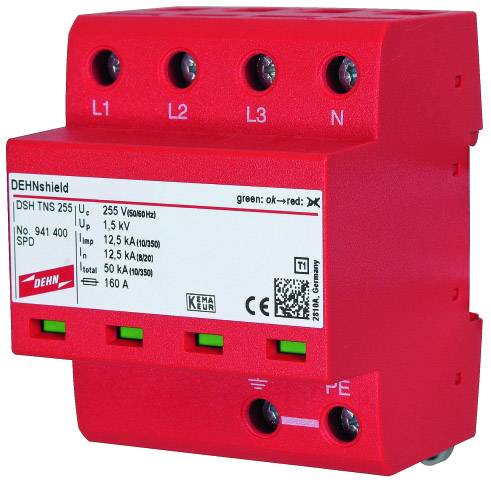

DEHN 941400 DSH TNS 255 Surge arrester Surge protection for: Switchboards 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS Combination arrester TN-S systems DSH TNS 255
- Ready to connect, application-optimized Combination arrester type 1 + Type 2 on radio link base
- Space-saving radio link technology with only 1 TE/pin allows compact design
- Allows compact lightning protection potential compensation including terminals protection
Technical specifications
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
50 kA
- Nominal voltage
230 V
400 V
- Pick-up time (details)
<100 na
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
941400
- Type
1 + 2
- Factory colour
Multicolour
- Standards
KEMA, VDE, UL
- Dim
(W x H x D) 72 x 90 x 65 mm
- Width
72 mm
- Height
90 mm
- Depth
65 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968195 DEHN 941400 DSH TNS 255 Surge arrester Surge protection for: Switchboards 50 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968195 DEHN 941400 DSH TNS 255 Surge arrester Surge protection for: Switchboards 50 kA 1 pc(s)
Description
Multi-pole, application-optimized combination surge arresters, type 1 + Type 2 after stretching shield EN 61643 on radio link basis. Space-saving radio link technology with only 1 TE/pin allows compact design. For the protection of residential buildings and for use in special applications. Enables terminals protection. For protection against overvoltages, even in direct lightning strikes. Can be used after the lightning protection zones concept at the interfaces 0A - 2.
