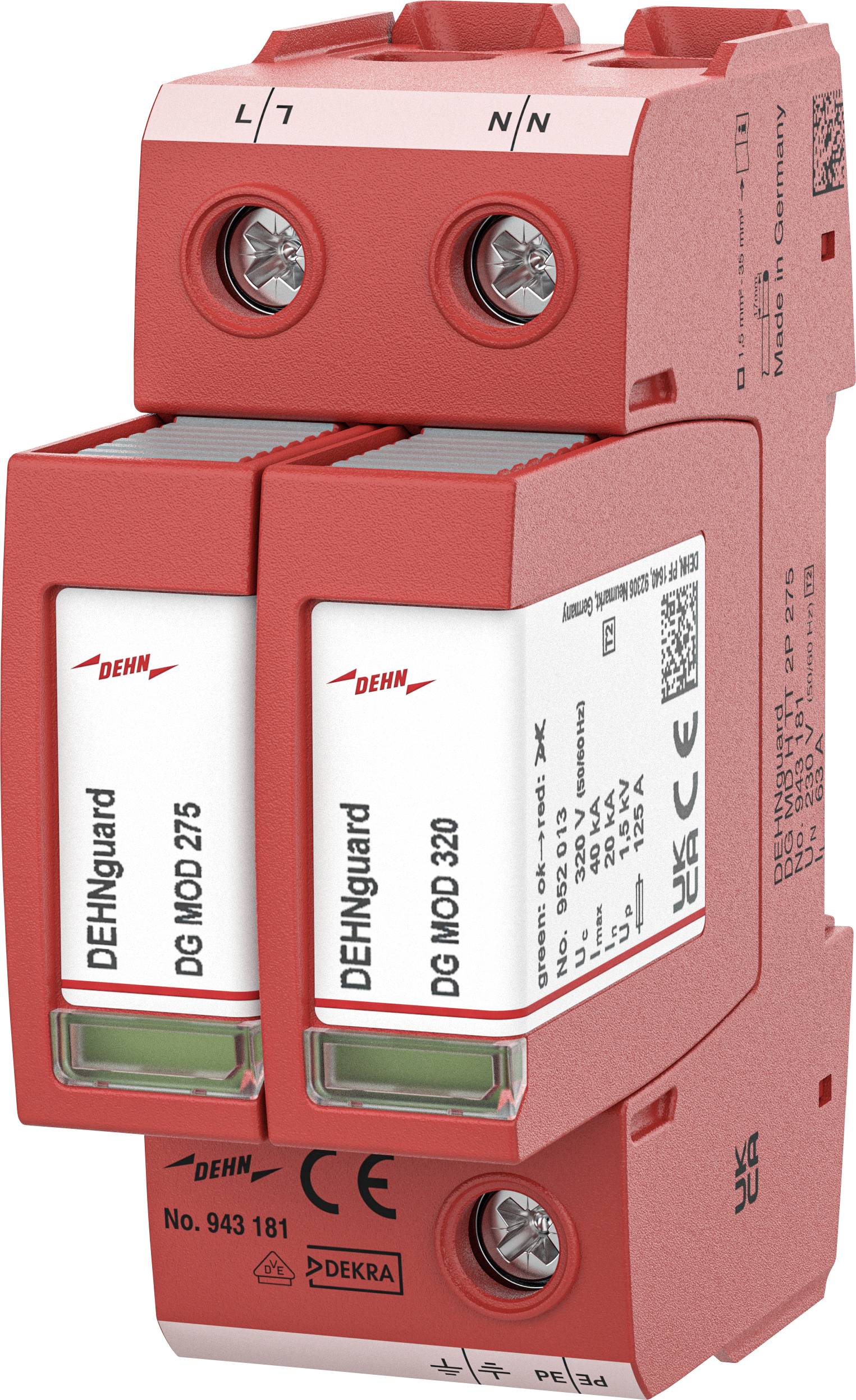

Red DEHNguard surge protection device with two cartridge modules labeled DG MOD 275 and DG MOD 320, shown front view.

Red DEHNguard surge protection device with two cartridge modules labeled DG MOD 275 and DG MOD 320, shown front view.

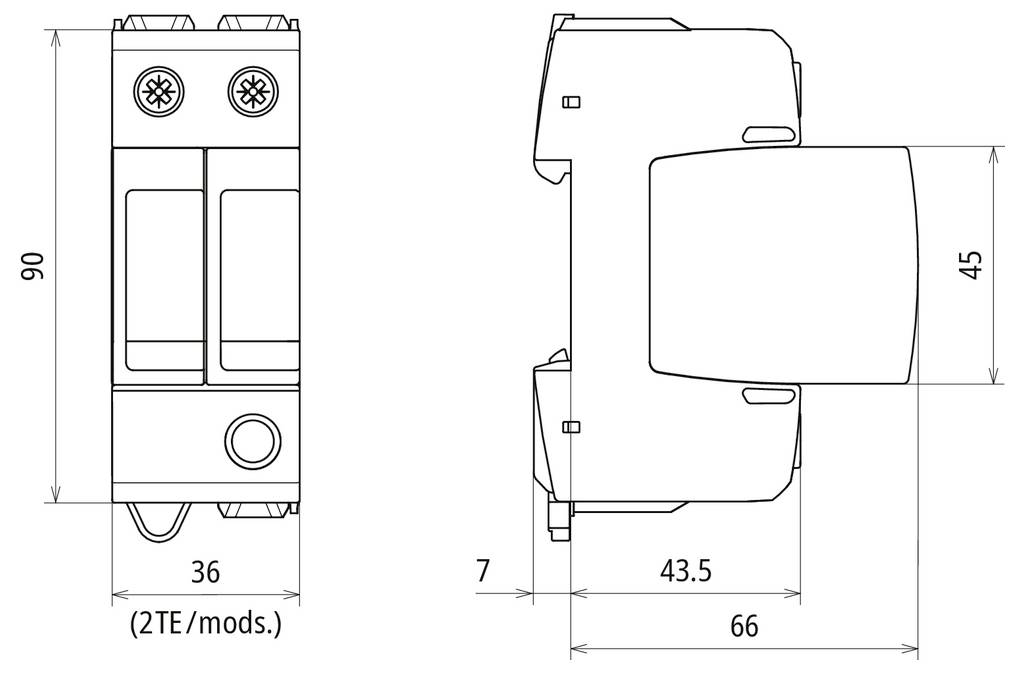

Technical dimension drawing of an electrical device showing front and side views with measurements: 90 high, 36 wide, 66 deep, and 45 for the side projection.<br>

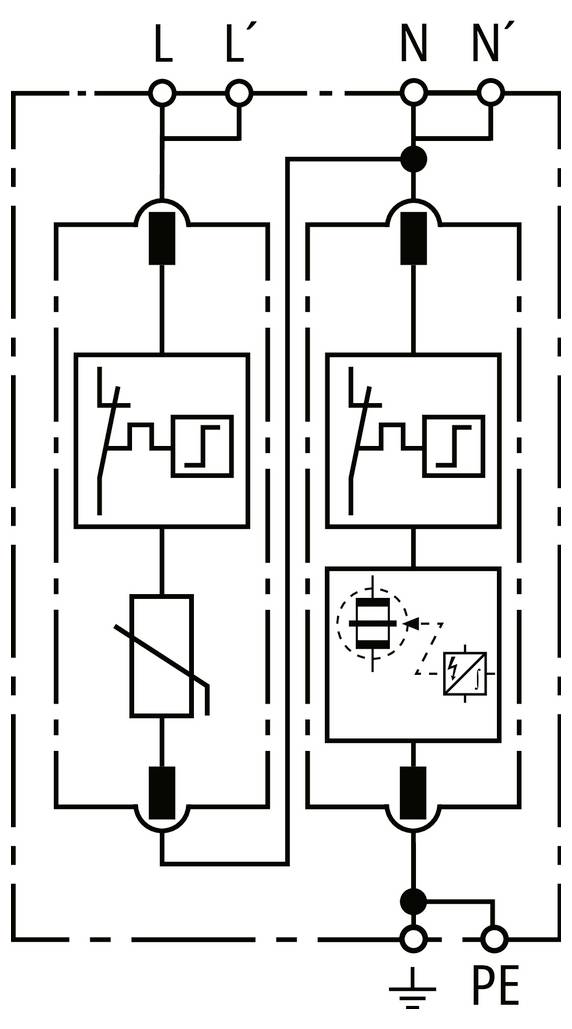

Electrical wiring diagram showing L and N input terminals feeding two protected circuits and a PE ground connection.

1/3

DEHN

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Mounting type: Top hat rail TH35
Installation size 2 TE

Product type: Surge arrester

: IP20

Manufacturer part #: 943181

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3801985 DEHN 943181 943181 Surge arrester 1 pc(s)

User & Safety Instructions

European union

User & Safety Instructions 3801985 DEHN 943181 943181 Surge arrester 1 pc(s)

Description

Multipin Surge suppressor DEHNguard M, type 2 according to EN 61643-11 with Hohem leakage current, consisting of base part and clipped protection modules. High device safety through conductor monitoring with thermo-dynamic control. For protection of low-voltage consumer devices from overvoltage. For use in the lightning protection zone concept at interfaces 0B - 1 and higher.

This text is machine translated.
