DEHN 943306 Surge arrester 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications

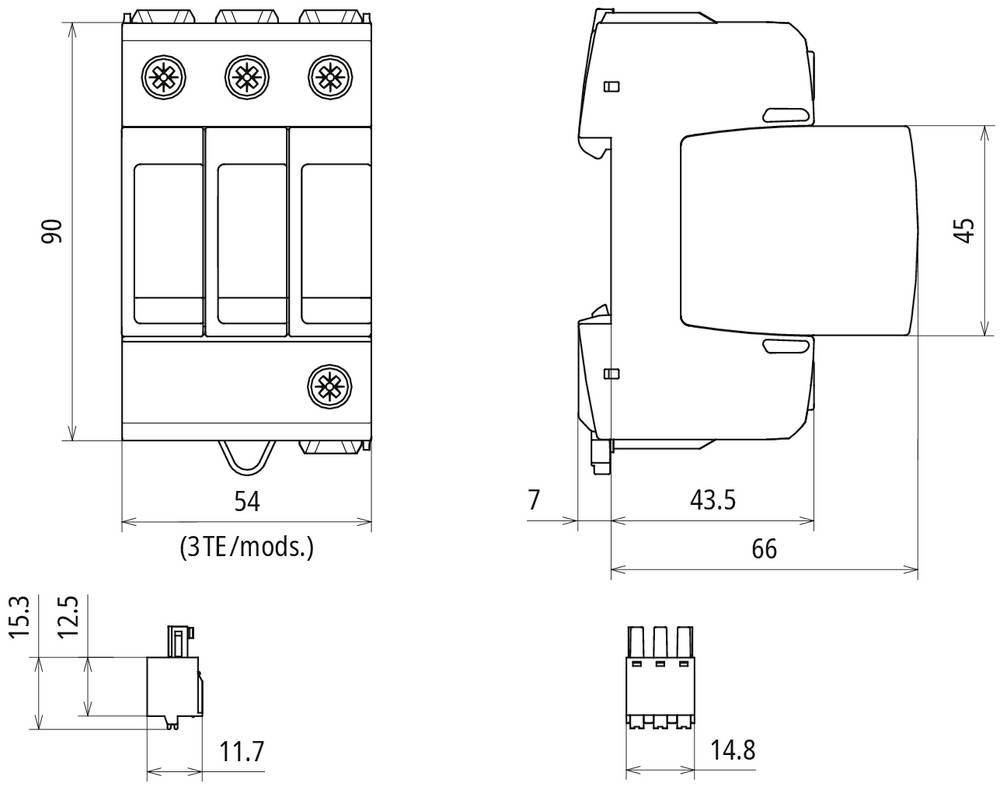

- Mounting type: Top hat rail TH35
- Installation size 3 TE
- Product type
Surge arrester
IP20
- Manufacturer part #
943306
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
TRUE
3
3 modular spacing
1.5 kV
275 V
20 kA
230 V
TRUE
Optic
IP20
FALSE
35 mm²
25 mm²
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
40 kA
50 kA
125 A
100 A
FALSE
FALSE
Documents & Downloads
Datasheet
Datasheet 3802057 DEHN 943306 Surge arrester 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3802057 DEHN 943306 Surge arrester 1 pc(s)
Description
Multipin surge suppressor DEHNguard M, type 2 according to EN 61643-11, consisting of base part and placed protection modules. High device safety through conductor monitoring with thermo-dynamic control. For protection of low-voltage consumer devices from overvoltage. For use in the lightning protection zone concept at interfaces 0B - 1 and higher.
