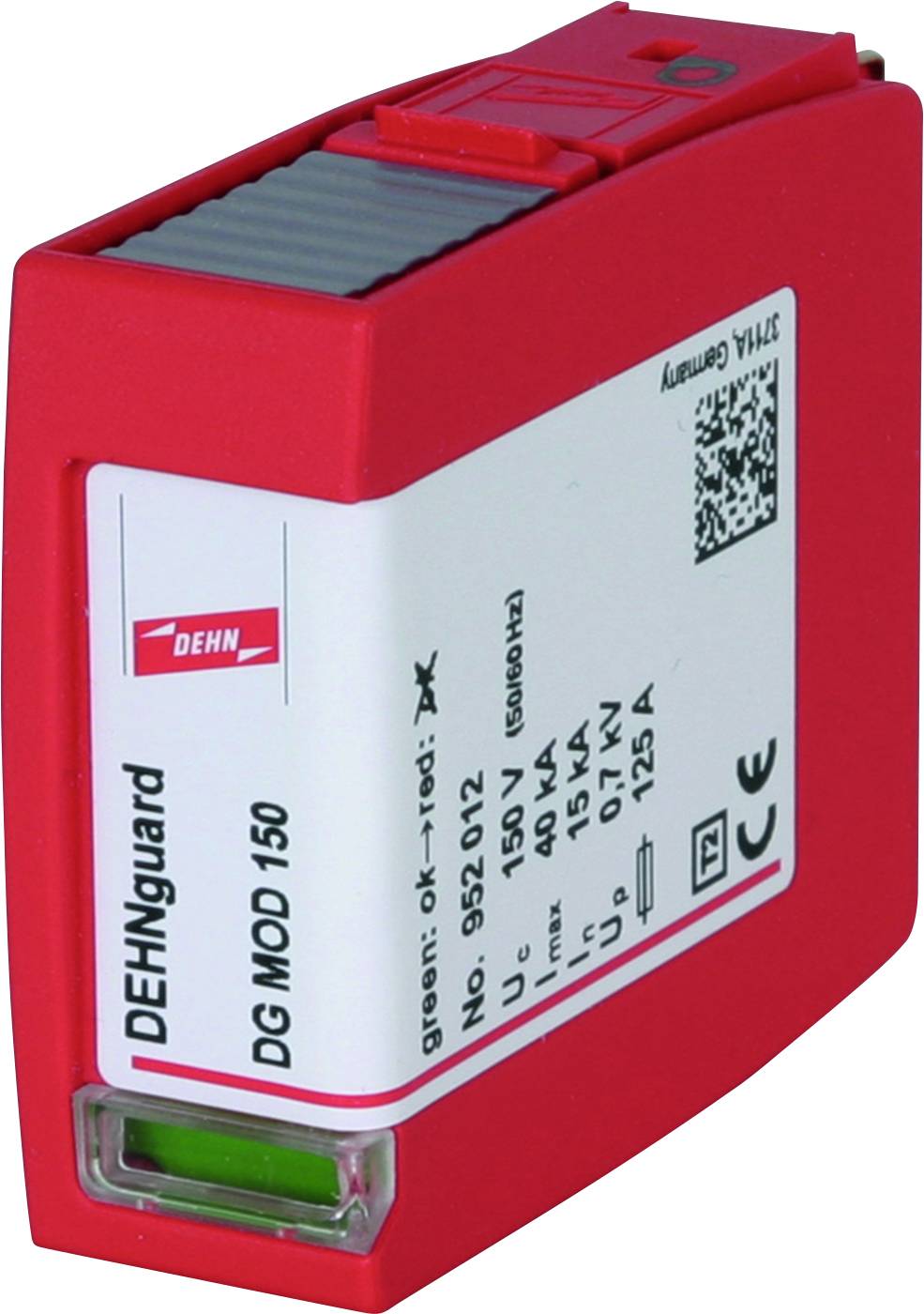

DEHN 952012 DG MOD 150 Surge protection module 15 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design of the poles: 1
- Size: 1 TE
- Maximum continuous voltage AC 150 V.
- Maximum continuous voltage DC 200 V
- Integrated fuse: No.
- Short-circuit proof: No.
- With remote signaling contact: No.
- Mounting type: On base element
- Protection level 0.7 kV
- Signaling on the device: Optical
- Product type
Surge protection module
- Leakage current
15 kA
- Nominal voltage
120 V AC
- Manufacturer part #
952012
- Type
2
- Compatible with (details)
DEHNGuard modular
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2303056 DEHN 952012 DG MOD 150 Surge protection module 15 kA 1 pc(s)
