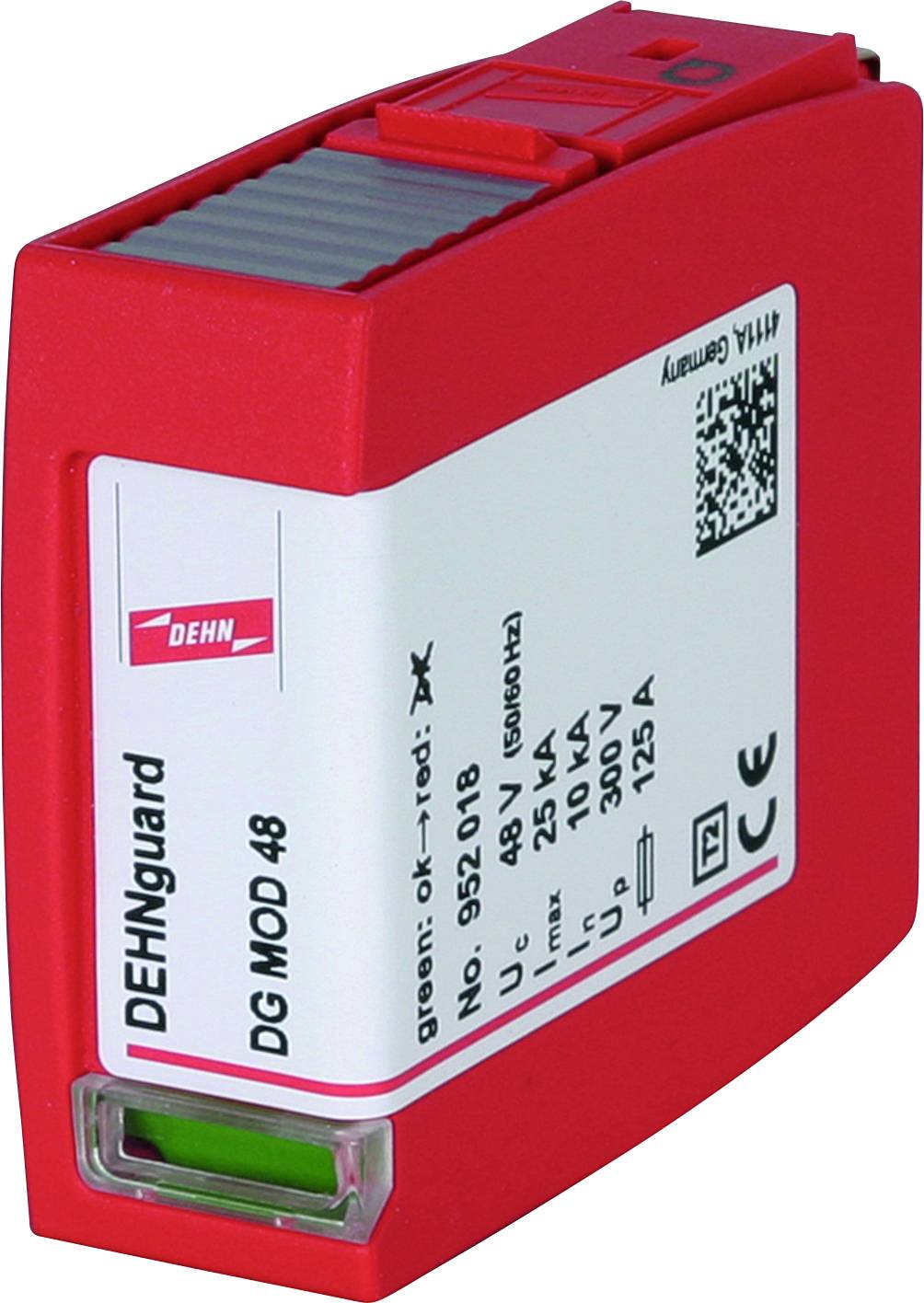

DEHN 952018 DG MOD 48 Surge protection module 7.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design of the poles: 1
- Size: 1 TE
- Highest continuous voltage AC 48 V
- Highest continuous voltage DC: 60 V.
- Integrated fuse: No.
- Short-circuit proof: No.
- With remote signaling contact: No.
- Mounting type: On base element
- Protection level 0.33 kV
- Signaling on the device: Optical
- Product type
Surge protection module
- Leakage current
7.5 kA
- Nominal voltage
42 V AC
- Manufacturer part #
952018
- Type
2
- Compatible with (details)
DEHNGuard modular
- Content
1 pc(s)
On basic element
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2303096 DEHN 952018 DG MOD 48 Surge protection module 7.5 kA 1 pc(s)
