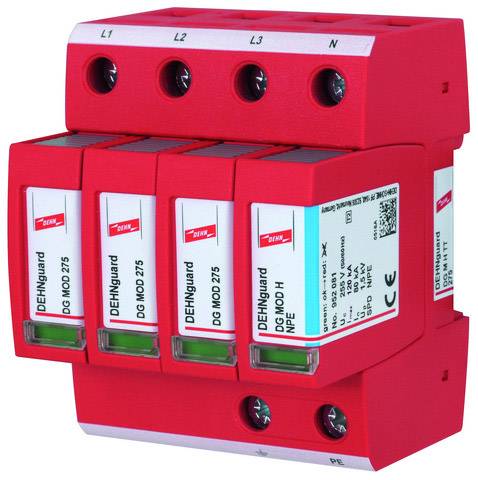

DEHN 952381 DG M H TT 275 Surge arrester 120 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS STRAIN DG M H TT 275 DG M H TT275
- Ready-to-complete unit consisting of a base part and inserted protection modules
- High discharge capacity by powerful zinc oxide varistors/radio links
- High reliability through arrester monitoring" Thermodynamics-Control"
Technical specifications
- Product type
Surge arrester
- Leakage current
120 kA
- Nominal voltage
230 V
400 V
- Pick-up time (details)
<100 ns
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
952381
- Type
2
- Standards
KEMA
- Dim
(W x H x D) 72 x 90 x 66 mm
- Width
72 mm
- Height
90 mm
- Depth
66 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967981 DEHN 952381 DG M H TT 275 Surge arrester 120 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967981 DEHN 952381 DG M H TT 275 Surge arrester 120 kA 1 pc(s)
Description
Multi-pole DEHNguard surge arresters, type 2 according to EN 61643 M with high discharge capacity, consisting of a base part and inserted protection modules. High reliability through arrester monitoring with thermodynamics-control. For the protection of low voltage consumer systems against the overvoltages. For use in lightning protection zones concept at the interfaces 0 B-1 and higher.
