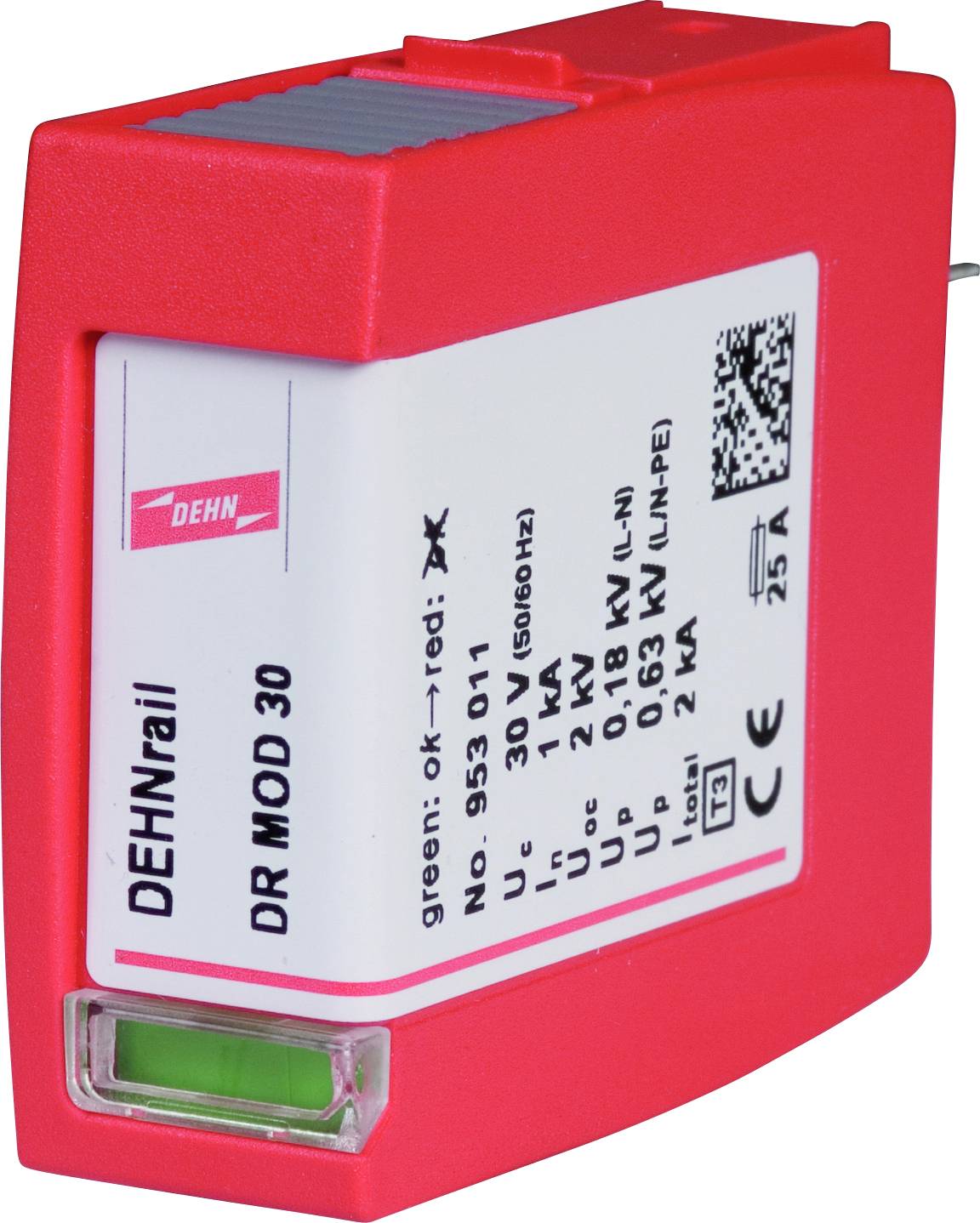

DEHN 953011 DR MOD 30 Surge protection module 1 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Total leakage surge current 2 kA
- Maximum continuous voltage AC 30 V.
- Highest continuous voltage DC: 30 V.
- With noise filter: No.
- With remote signaling contact: No.
- Mounting type: On base element
- Rated load current 25 A.
- Number of poles: 1
- Protection level L-N: 0.18 kV
- Protection level L-PE/N-PE: 0.63 kV
- Signaling on the device: Optical
- Product type
Surge protection module
- Leakage current
1 kA
- Nominal voltage
24 V AC
- Manufacturer part #
953011
- Type
3
- Compatible with (details)
DEHNrail modular
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2303077 DEHN 953011 DR MOD 30 Surge protection module 1 kA 1 pc(s)
