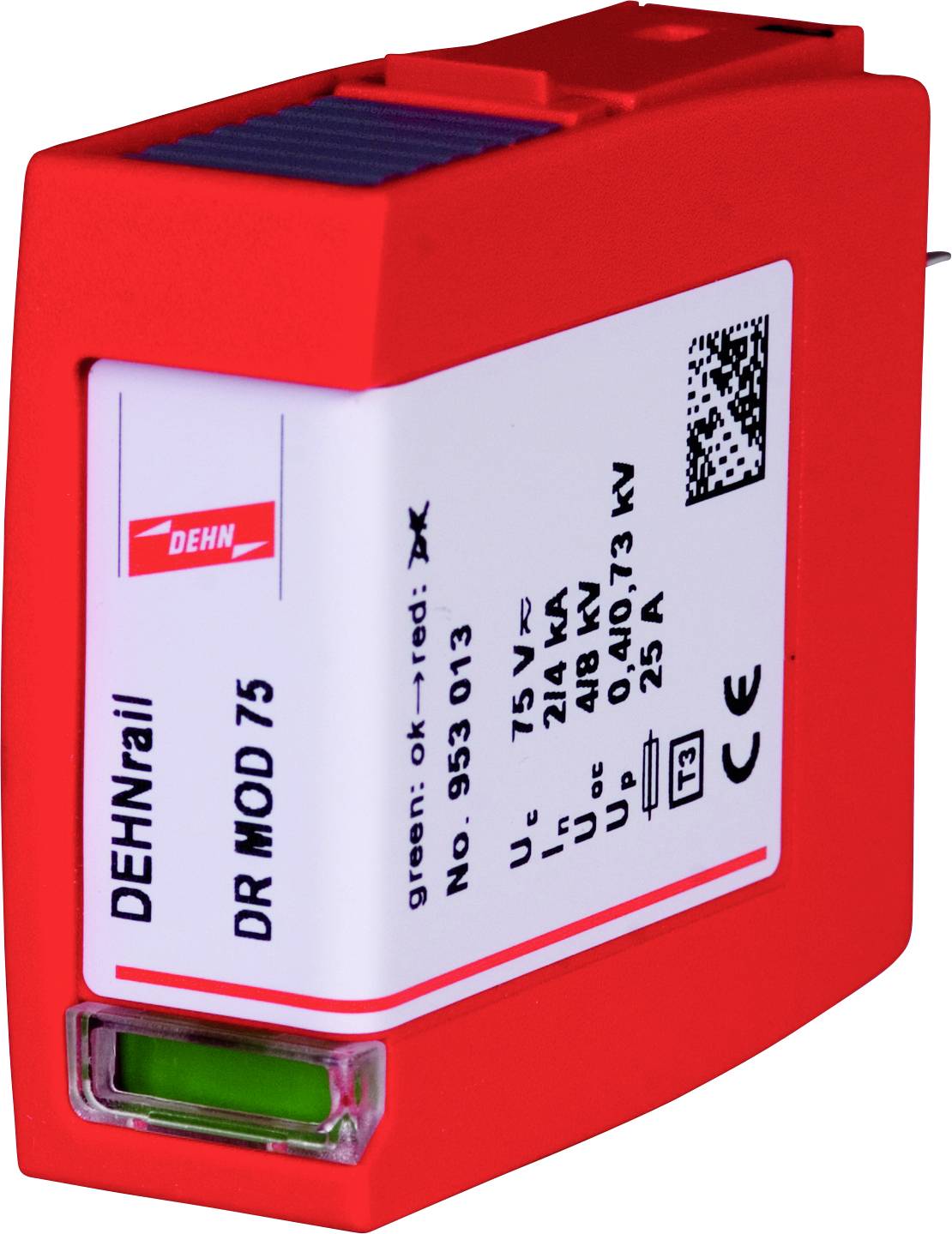

DEHN 953013 DR MOD 75 Surge protection module 2 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Total leakage surge current 4 kA
- Maximum continuous voltage AC 75 V
- Highest continuous voltage DC 75 V
- With noise filter: No.
- With remote signaling contact: No.
- Mounting type: On base element
- Rated load current 25 A.
- Number of poles: 1
- Protection level L-N: 0.4 kV
- Protection level L-PE/N-PE: 0.73 kV
- Signaling on the device: Optical
- Product type
Surge protection module
- Leakage current
2 kA
- Nominal voltage
60 V AC
- Manufacturer part #
953013
- Type
3
- Compatible with (details)
DEHNrail modular
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2303079 DEHN 953013 DR MOD 75 Surge protection module 2 kA 1 pc(s)
