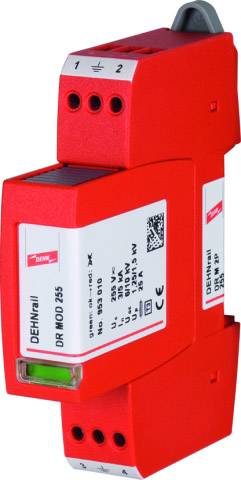

DEHN 953200 DR M 2P 255 Surge arrester Surge protection for: Switchboards 5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS STRAIN 953 200 surge arresters expansion rail 2p DR M 2 p 255
- Two-pole surge arresters consisting of a base element and plugged protection module
- High discharge capacity by powerful zinc oxide varistor/Radio Link combination
- Energy-coordinated within the Red/Line Product Family
Technical specifications
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
5 kA
- Nominal voltage
230 V
- Pick-up time (details)
<25 ns
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
953200
- Type
3
- Factory colour
Multicolour
- Dim
(W x H x D) 18 x 90 x 66 mm
- Width
18 mm
- Height
90 mm
- Depth
66 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1967876 DEHN 953200 DR M 2P 255 Surge arrester Surge protection for: Switchboards 5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967876 DEHN 953200 DR M 2P 255 Surge arrester Surge protection for: Switchboards 5 kA 1 pc(s)
Description
Two-pole surge arresters, type 3 according to EN 61643 modular expansion rail, consisting of a base element and plugged protection module. High discharge capacity by powerful zinc oxide varistor/Radio Link combination. Protecting the power supply of devices of the industrial electronics against transient overvoltages in control cabinets. For use in lightning protection zones concept at the interfaces 1 - 2 and higher.
