Name: DEHN EP NH1 3 TI GL M10 Earth ground cartridge (partial insulation)
Brand: DEHN
SKU: 2750611

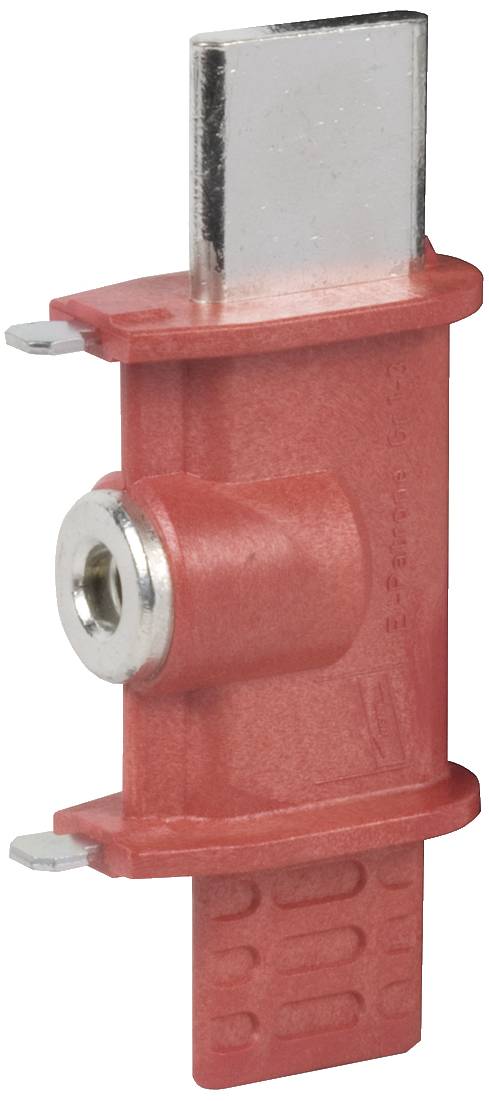

Red electrical fuse with flat metal contact and mounting screw in the centre, for use in electrical devices.

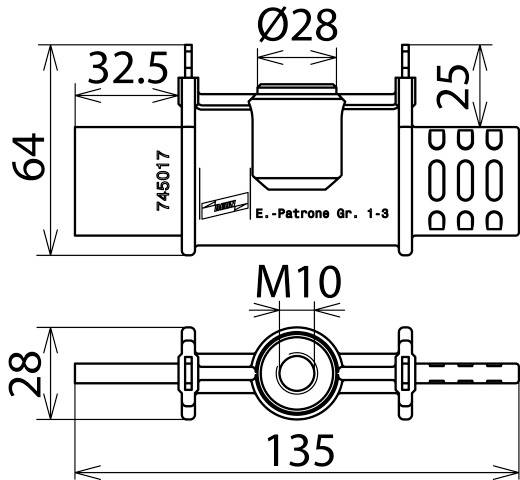

Technical drawing of an E-cartridge, showing dimensions: Total height 64 mm, width 135 mm, diameter 28 mm, screw M10.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Earth ground cartridge (partial insulation)

Interfaces: M10 threaded bush

Content: 1 pc(s)

Type: EP NH1 3 TI GL M10

: NH1-3

: 9.6 kA

: 0.0-35.0 mm²

: FALSE

UKCA: not relevant
