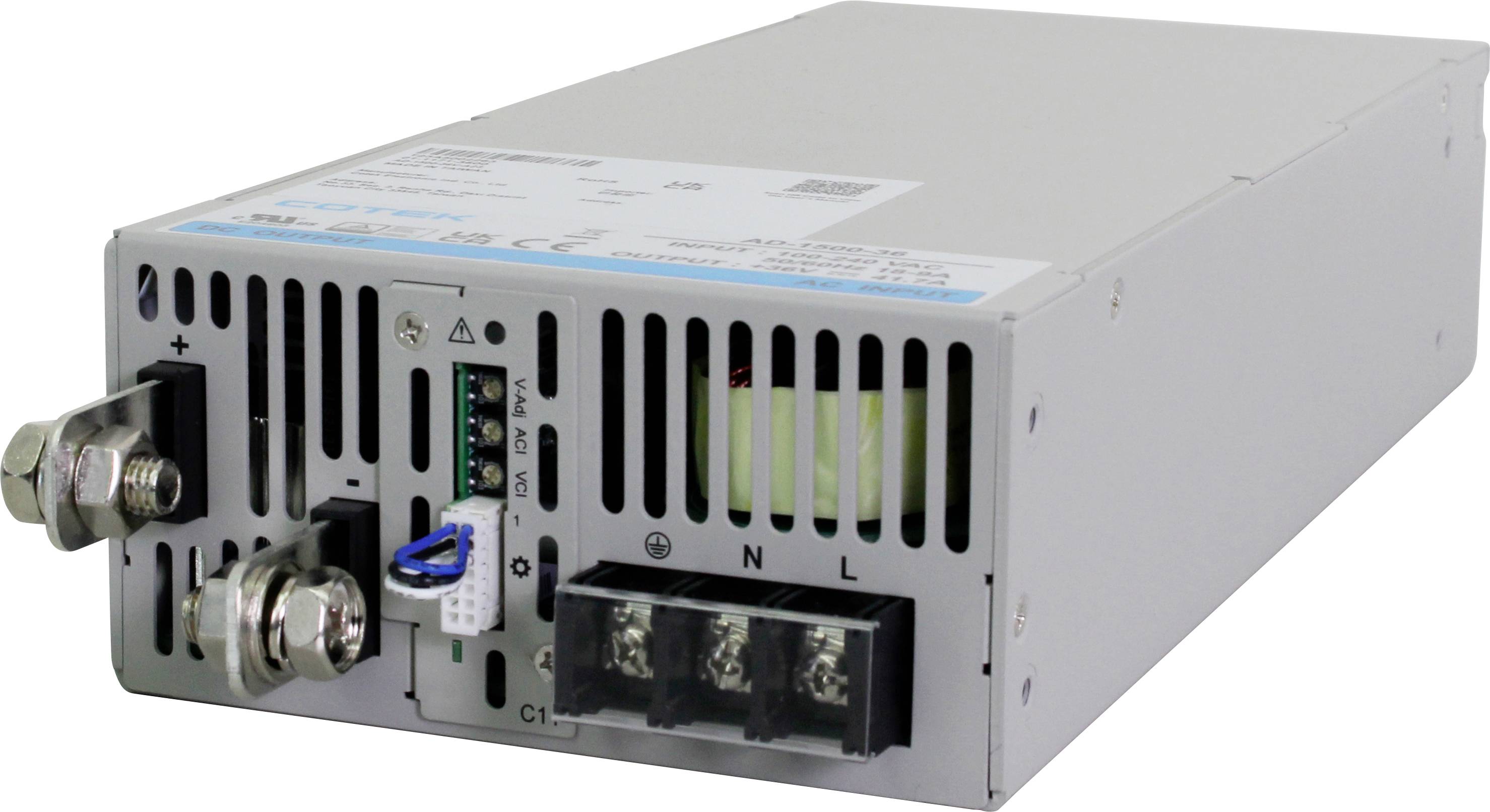

A silver, rectangular power supply enclosure with connections and ventilation slots, used in industrial electronic systems.

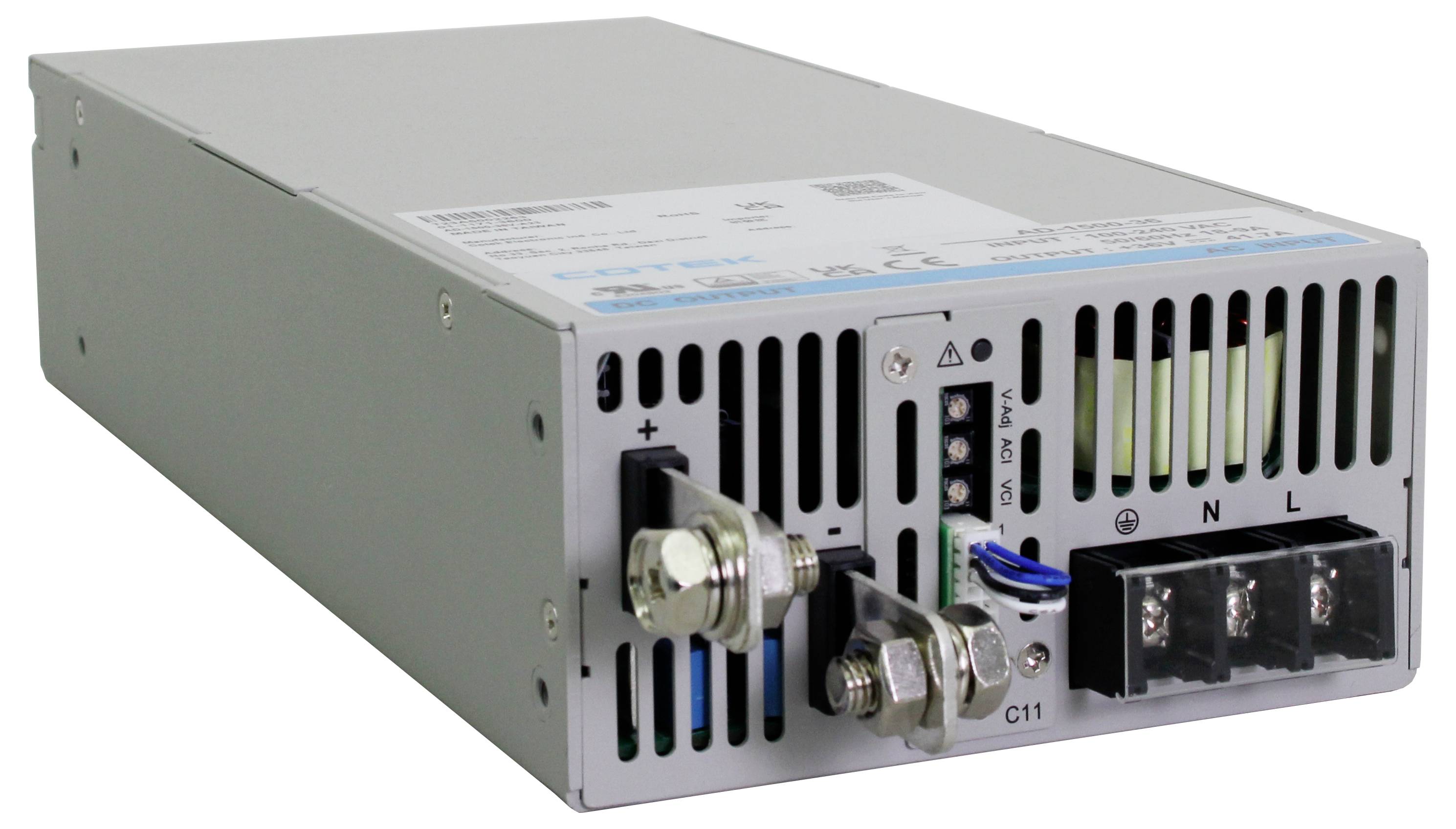

A rectangular switch-mode power supply with connections and a ventilation grille on the front, likely for industrial applications.

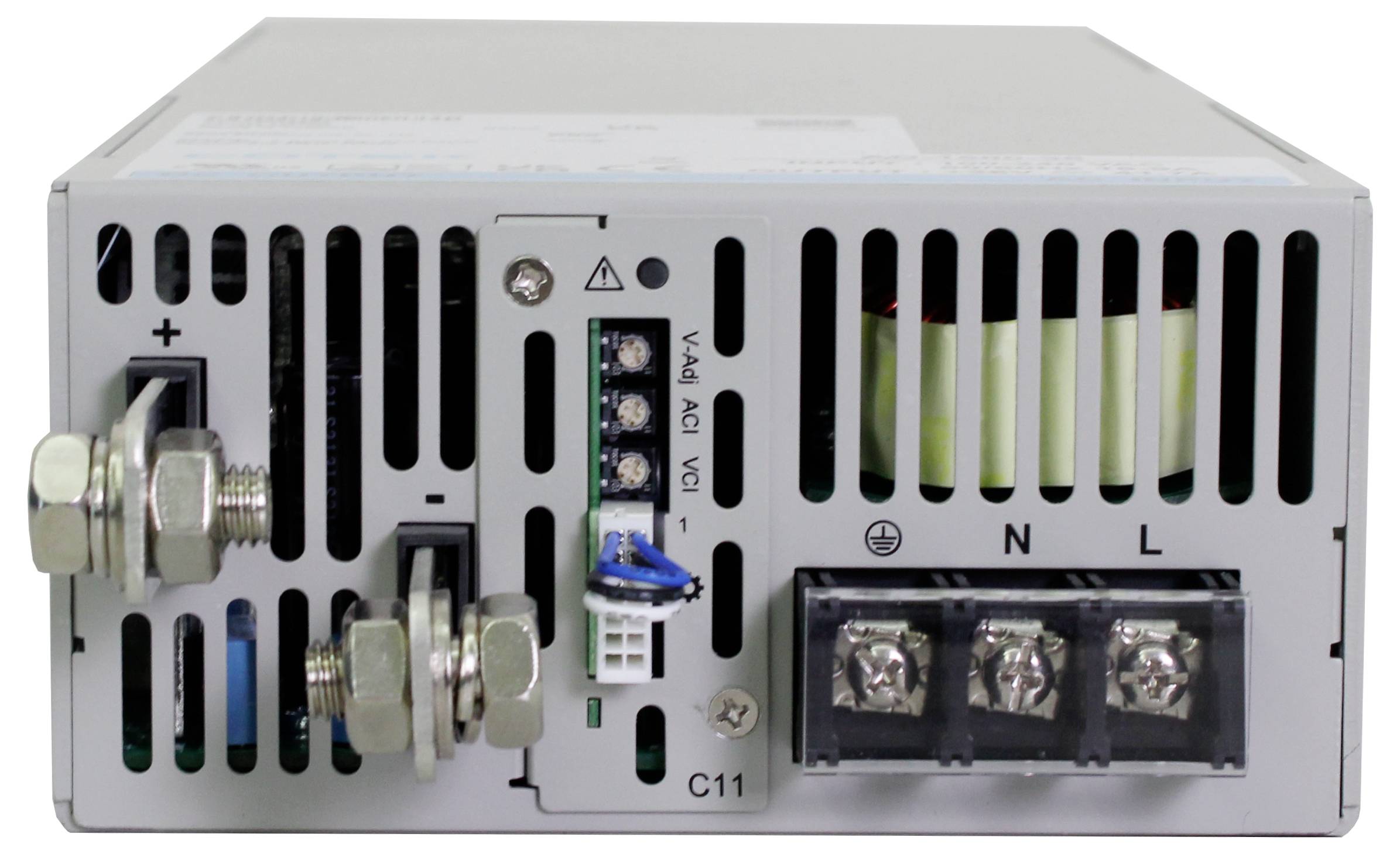

Electrical power supply with connections for positive and negative terminals, along with earthing screws. Cable connections marked with N and L are visible.

'Display of a control system with multiple measuring instruments and statistics. Next to it on the right, an electronic device AD-1500.'

1. A robotic arm is working on a circuit board.<br>2. Hands are interacting with a digital globe symbol.<br>3. A modern bus in a garage.<br>4. Two laboratory staff are operating laboratory equipment.

Dehner Elektronik AD 1500-120-C11 (120VDC) AC/DC PSU module 120 V DC 12.5 A 1500 W-5

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Programmable digital power supply Cotek AD 1500-120-C11 Dehner Elektronik

Output 120 V DC / 12.5 A
Power 1500 W
Screw terminal

Technical specifications

Product type: AC/DC PSU module

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 12.5 A

Output current (max.) - rounded: 12.5 A

Min. input voltage: 90 V AC
250 V DC

Dim: (L x W x H) 297 x 128 x 64 mm

Output voltage (max.): 120 V DC

Connection: Screw terminal

: 1500 W

No. of outputs: 1 x

Min. operating temperature (derating): 60 °C

Operating temperature (min.): -25 °C

Weight: 2600 g

PSU features: Adjustable voltage output
Adjustable current output
Regulated

Type: Switched PSU

Width: 128 mm

Height: 64 mm

Length: 297 mm

Type: AD 1500-120-C11 (120VDC)

PFC: Yes

Max. temperature: 85 °C

Min. temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3338779 Dehner Elektronik AD 1500-120-C11 (120VDC) AC/DC PSU module 120 V DC 12.5 A 1500 W

User & Safety Instructions

User & Safety Instructions 3338779 Dehner Elektronik AD 1500-120-C11 (120VDC) AC/DC PSU module 120 V DC 12.5 A 1500 W

Conformity certificate

Conformity certificate 3338779 Dehner Elektronik AD 1500-120-C11 (120VDC) AC/DC PSU module 120 V DC 12.5 A 1500 W

Warranty Terms

Warranty Terms 3338779 Dehner Elektronik AD 1500-120-C11 (120VDC) AC/DC PSU module 120 V DC 12.5 A 1500 W

Description

For the complex requirements in conjunction with Industry 4.0, healthcare, battery charging infrastructure and much more, Cotek has developed the new AD-1500 series.

Through interchangeable interface modules, many applications are possible – from single and parallel operation, through direct control to remote control and remote monitoring via Ethernet.

The universal AC input range enables the worldwide use in different environments. Output rated voltages are available as standard from 120 VDC to 400 VDC. Both the output voltage and output current are flexible and intelligent programmable in a range from 0% to 105%.

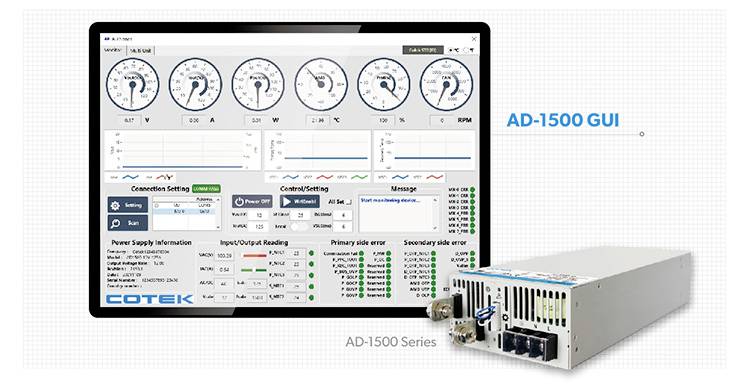

The new AD-1500 power supply series supports various interface configurations: RS-232/RS-485, I²C, Ethernet, PMBus, MODBUS. The user is enabled by an easy to use graphical interface to configure the settings flexibly and precisely. The insulation circuit and the integrated ORING diode ensure an exact interplay of all the components of the application being operated.

Conrad does not offer single interchangeable interface cards (A23, A24, C11, and ETHERNET), but all models with voltages 120 VDC to 400 VDC in the different versions.

C11 single card (voltage and current potentiometers and UART interface)
A23 Standard card (parallel operation) Cotek STD protocol (RS-485) and PMBus support
D11 Ethernet card (parallel) ARP, IPv4, UDP, TCP Device Search Utility (DSU), DHCP client, SNMP, ICMP
A24 standard card (parallel operation) Modbus & PMBus

Conrad item number 3338777 AD 1500-120-A23 (120VDC)
Conrad item number 3338778 AD 1500-120-A24 (120VDC)
Conrad item number 3338779 AD 1500-120-C11 (120VDC)
Conrad item number 3338780 AD 1500-120-D11 (120VDC)
Conrad item number 3338781 AD 1500-150-A23 (150VDC)
Conrad product code 3338782 AD 1500-150-A24 (150VDC)
Conrad item number 3338783 AD 1500-150-C11 (150VDC)
Conrad item number 3338784 AD 1500-150-D11 (150VDC)
Conrad item number 3338785 AD 1500-250-A23 (250VDC)
Conrad item number 3338786 AD 1500-250-A24 (250VDC)
Conrad item number 3338787 AD 1500-250-C11 (250VDC)
Conrad item number 3338788 AD 1500-250-D11 (250VDC)
Conrad item number 3338789 AD 1500-400-A23 (400Vdc)
Conrad item number 3338792 AD 1500-400-A24 (400Vdc)
Conrad item number 3338790 AD 1500-400-C11 (400Vdc)
Conrad item number 3338791 AD 1500-400-D11 (400Vdc)
