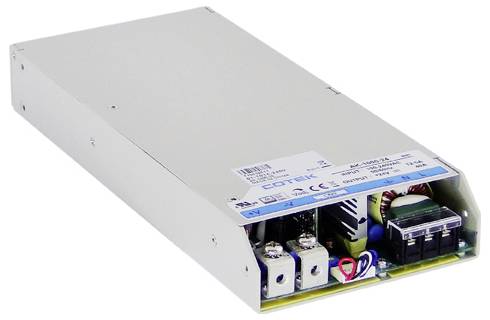

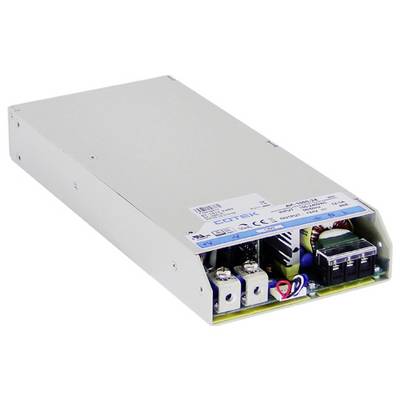

Dehner Elektronik AK 1000-24 AC/DC industrial PSU module 24 V DC 40 A 1000 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Industrial power supply Cotek AK 1000-24 Dehner Elektronik GmbH
- Output 24 V DC / 40 A
- Power 1000 W
- Screw terminal
Technical specifications
- Type
Switched PSU
- Product type
AC/DC industrial PSU module
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
40 A
- Output current (max.) - rounded
40 A
- Min. input voltage
90 V AC
127 V DC
- Dim
(L x W x H) 283 x 127 x 41 mm
- Output voltage (max.)
24 V DC
- Connection
Screw terminal
1000 W
- No. of outputs
1 x
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
-25 °C
- Weight
2.1 kg
- PSU features
Regulated
Adjustable voltage output
- Type
Switched PSU
- Width
127 mm
- Height
41 mm
- Length
283 mm
- Type
AK 1000-24
Documents & Downloads
Datasheet
Datasheet 3350544 Dehner Elektronik AK 1000-24 AC/DC industrial PSU module 24 V DC 40 A 1000 W
User & Safety Instructions
User & Safety Instructions 3350544 Dehner Elektronik AK 1000-24 AC/DC industrial PSU module 24 V DC 40 A 1000 W
Warranty Terms
Warranty Terms 3350544 Dehner Elektronik AK 1000-24 AC/DC industrial PSU module 24 V DC 40 A 1000 W
Description
The advantages of the Cotek AK-1000 series are:
Extremely compact design with built-in fans.
Wide input voltage range 90-264 VAC, 127-370 VDC
VARIANTS 12 V, 15 V, 24 V, 27 V, 48 V
Current limiter
The output voltage can be adjusted in a range from 30% to 105%.
The output current can be adjusted in a range from 40% to 105%.
Parallel operation
Auxiliary voltage +5V / 0.5A
Power OK signal
Remote on/off
Remote sense
Protection: Overvoltage protection (OVP), overload protection (OLP), over temperature protection (OTP), fan failure
Applications e.g.: Charging technology, motors, laser technology, water treatment, industrial heaters, etc. - wherever variable voltages and currents are required.
Simple control over control voltage or resistance
This text is machine translated.
Extremely compact design with built-in fans.
Wide input voltage range 90-264 VAC, 127-370 VDC
VARIANTS 12 V, 15 V, 24 V, 27 V, 48 V
Current limiter
The output voltage can be adjusted in a range from 30% to 105%.
The output current can be adjusted in a range from 40% to 105%.
Parallel operation
Auxiliary voltage +5V / 0.5A
Power OK signal
Remote on/off
Remote sense
Protection: Overvoltage protection (OVP), overload protection (OLP), over temperature protection (OTP), fan failure
Applications e.g.: Charging technology, motors, laser technology, water treatment, industrial heaters, etc. - wherever variable voltages and currents are required.
Simple control over control voltage or resistance
